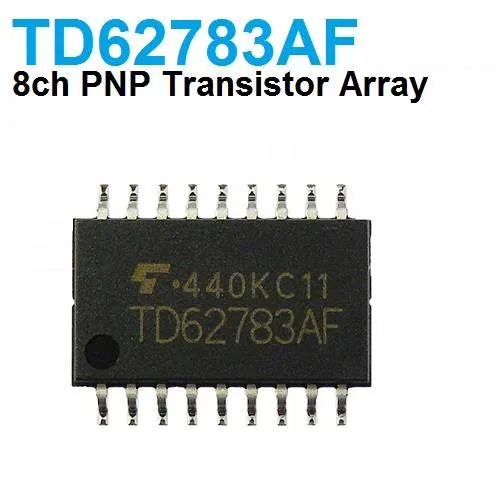

TD62783AF 8-Channel High-Voltage PNP Source Driver Array SOP-18
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | TD62783AF 8 Channel High-Voltage PNP Source Driver Transistor Array | 50 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 50 EGP
About this product
TD62783AF is an 8-channel high-voltage PNP source driver array for switching loads such as relays, lamps and hammer drivers, and for fluorescent display applications. Each output sources up to 500 mA and has built-in clamp diodes for inductive loads. It comes in an SOP-18 package with logic-compatible inputs.
Specifications
- Channels
- 8
- Output voltage (VCC)
- 50 V min
- Output current per channel
- -500 mA min
- Clamp diodes
- Built-in
- Package
- SOP-18
Frequently asked questions
What is the price of TD62783AF 8-Channel High-Voltage PNP Source Driver Array SOP-18 in Egypt?
TD62783AF 8-Channel High-Voltage PNP Source Driver Array SOP-18 currently costs 50 EGP in Egypt.
Where can I buy TD62783AF 8-Channel High-Voltage PNP Source Driver Array SOP-18 in Egypt?
TD62783AF 8-Channel High-Voltage PNP Source Driver Array SOP-18 is available from UGE. Compare the offers above to find the best price.
How is a load connected to the TD62783AF?
Because it is a PNP source driver, the load is connected between each output and ground. The output supplies current to the load when the input is active.
Can it drive inductive loads such as relays?
Yes. The output clamp diodes are built in to protect the driver from the voltage spikes produced by inductive loads.
