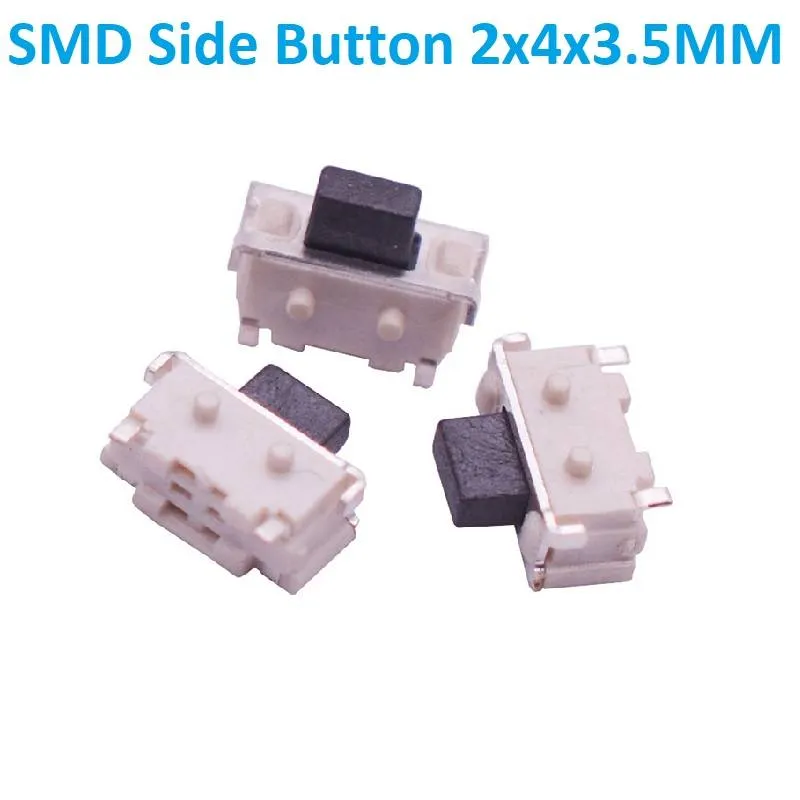

SMD Rectangular Tactile Push Button SPST, 2x4x3.5 mm
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | SMD Rectangle push Button SPST Tactile Switch right Angle 2x4x3.5MM | 2 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 2 EGP
About this product
A surface-mount rectangular tactile push button with SPST action and dome contact, giving clear click feedback. Rated 12V 50mA, it sends a signal when pressed and is used to input commands in consumer and industrial electronic devices and PCB designs.
Specifications
- Type
- SPST tactile push button
- Mounting
- SMD
- Size
- 2 x 4 x 3.5 mm
- Rating
- 12 V, 50 mA
- Pins
- 2
Frequently asked questions
What is the price of SMD Rectangular Tactile Push Button SPST, 2x4x3.5 mm in Egypt?
SMD Rectangular Tactile Push Button SPST, 2x4x3.5 mm currently costs 2 EGP in Egypt.
Where can I buy SMD Rectangular Tactile Push Button SPST, 2x4x3.5 mm in Egypt?
SMD Rectangular Tactile Push Button SPST, 2x4x3.5 mm is available from UGE. Compare the offers above to find the best price.
How do I wire it to a microcontroller?
Connect one terminal to a GPIO pin and the other to GND, then enable the internal pull-up or add an external pull-up resistor. The pin reads LOW when the button is pressed. Debounce the signal in software.
Can it switch a motor or LED directly?
It is rated for 12V 50mA, so use it only as a signal input. Switch motors or high-current LEDs through a transistor, MOSFET or relay.
