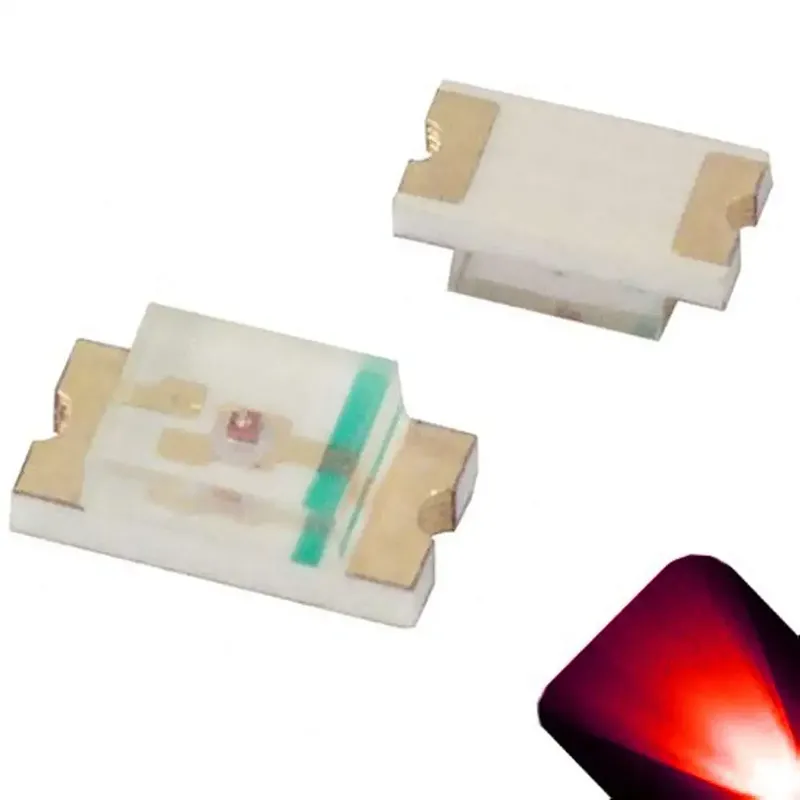

SMD 1206 Red LED 3.2V 700mcd
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers ElectronicsCheapest | SMD LED Red 1206 | 0.8 EGP | View in store |
 UGE | LED SMD 1206 RED | 2.28 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 0.8 EGP
About this product
Tiny surface-mount red LED in the 1206 package, slightly larger than a 0603. Suited to status indicators and small LED matrices built with hot-air or reflow soldering. Listed forward voltage is 3.2 V and brightness is 700 mcd, so it is not especially bright.
Specifications
- Package
- 1206 SMD
- Color
- Red / أحمر
- Forward voltage
- 3.2 V / 3.2 فولت
- Brightness
- 700 mcd
- Mounting
- Surface mount (SMD) / تركيب سطحي
Frequently asked questions
What is the price of SMD 1206 Red LED 3.2V 700mcd in Egypt?
SMD 1206 Red LED 3.2V 700mcd currently costs between 0.8 and 2.28 EGP across 2 offers in Egypt.
Where can I buy SMD 1206 Red LED 3.2V 700mcd in Egypt?
SMD 1206 Red LED 3.2V 700mcd is available from Makers Electronics and UGE. Compare the offers above to find the best price.
What series resistor is needed on a 5 V supply?
Use R = (Vsupply - Vf) / I. For a 5 V supply, Vf of 3.2 V and a target current of 10 mA, R = (5 - 3.2) / 0.01 = 180 ohms. Choose the current you want and calculate from there.
Can it be connected directly to a 3.3 V pin?
Not without a current-limiting resistor. With a 3.2 V forward voltage, almost no headroom is left at 3.3 V, so the current becomes very sensitive to small supply changes. Always use a series resistor.
