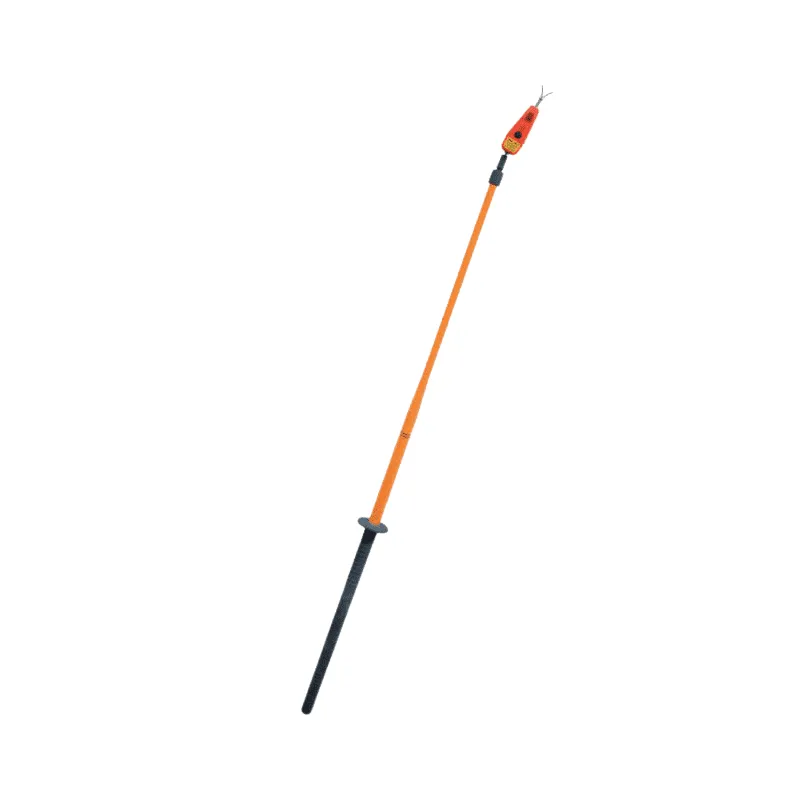

SEW 290 HD High Voltage Detector 6kV to 81.5kV
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | SEW 290 HD High Voltage Detector (6kV-81.5kV) | 32,635 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 32,635 EGP
About this product
The SEW 290 HD is a high voltage detector for sensing the presence of high voltage in the 6kV to 81.5kV range. Electrical technicians use it to check whether power lines or high-voltage equipment are energised before maintenance or inspection. It is a safety tool and does not replace proper lockout and earthing procedures.
Specifications
- Measuring voltage range
- 6 kV to 81.5 kV
- Operation start voltage (to ground)
- 2.7 kV
- Withstand voltage
- 100 kV for 1 minute (300 mm)
- Insulation resistance
- 2000 MΩ min at 1 kV DC
- Leakage current
- 100 µA or less at withstand
Frequently asked questions
What is the price of SEW 290 HD High Voltage Detector 6kV to 81.5kV in Egypt?
SEW 290 HD High Voltage Detector 6kV to 81.5kV currently costs 32,635 EGP in Egypt.
Where can I buy SEW 290 HD High Voltage Detector 6kV to 81.5kV in Egypt?
SEW 290 HD High Voltage Detector 6kV to 81.5kV is available from UGE. Compare the offers above to find the best price.
Can it detect 230V mains voltage?
No. Its measuring range starts at 6 kV. For low-voltage circuits, use a multimeter.
What does the operation start voltage mean?
The 2.7 kV start voltage (to ground) is the level at which the detector begins to respond. Follow the manual's safety instructions, and test the detector on a known live source before and after use.
