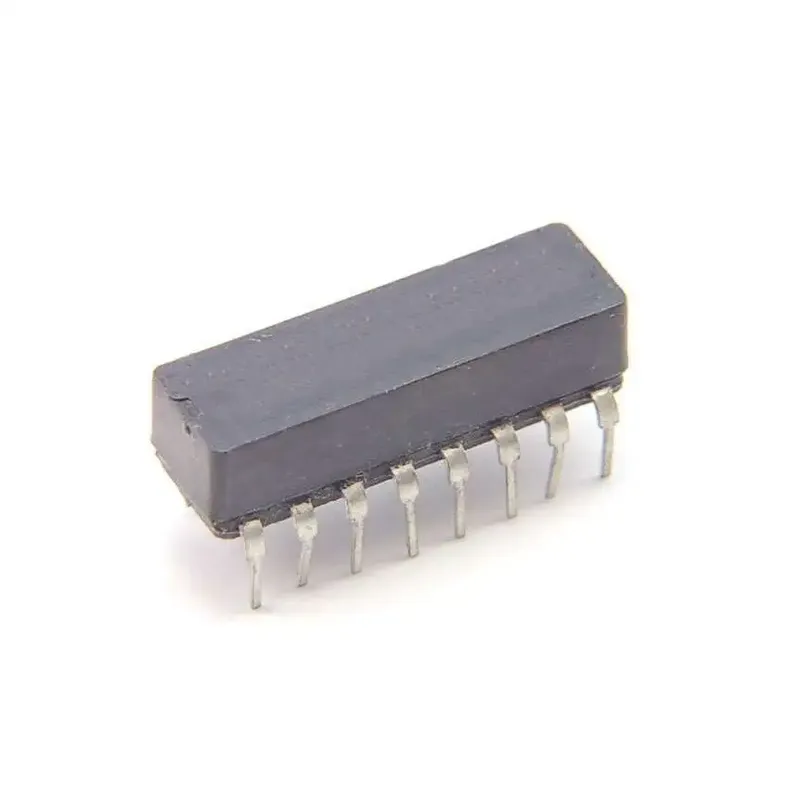

SDL50N75 Passive Delay Line IC 50ns 75Ω DIP-16
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | SDL50N75 Passive Delay Line IC DIP-16 | 50 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 50 EGP
About this product
SDL50N75 is a 75 Ohm passive delay line in a DIP-16 package, providing a total delay of 50ns with a tap-to-tap delay of 5ns. It is used to add a fixed timing delay to signal paths in impedance-matched circuits, and it needs no power supply.
Specifications
- Impedance
- 75Ω ±10%
- Total delay
- 50ns ±3ns
- Tap-to-tap delay
- 5ns ±1ns
- Rise time (max)
- 15ns
- Distortion (max)
- 15%
- Attenuation (max)
- 10%
- Insulation resistance
- 100MΩ min. at DC 50V
- Operating temperature range
- 0°C to +70°C
Frequently asked questions
What is the price of SDL50N75 Passive Delay Line IC 50ns 75Ω DIP-16 in Egypt?
SDL50N75 Passive Delay Line IC 50ns 75Ω DIP-16 currently costs 50 EGP in Egypt.
Where can I buy SDL50N75 Passive Delay Line IC 50ns 75Ω DIP-16 in Egypt?
SDL50N75 Passive Delay Line IC 50ns 75Ω DIP-16 is available from Makers Electronics. Compare the offers above to find the best price.
Does it need a power supply?
No. It is a passive device made of inductors and capacitors, so it adds delay without any supply connection.
What does the tap-to-tap delay mean?
It is the delay between two adjacent taps along the delay line. Here it is 5ns ±1ns, which sets the resolution of intermediate delay points.
