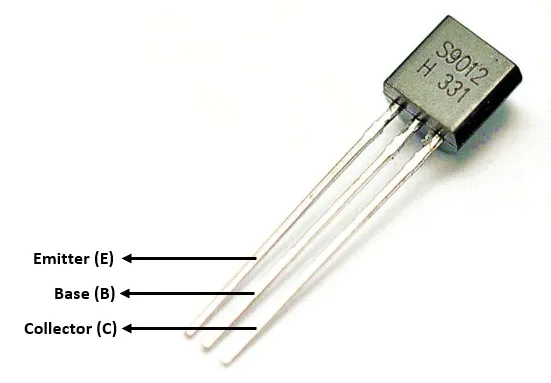

S9012 PNP Small Signal Transistor TO-92
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 MicroohmCheapest | S9012 PNP Small Signal Transistor | 1 EGP2 | View in store |
 Makers Electronics | S9012 TO-92 PNP Bipolar Transistors – BJT | 1 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 1 EGP
About this product
A PNP small-signal bipolar transistor in a TO-92 package, rated for 25 V collector-emitter and 0.5 A maximum collector current, with a 150 MHz transition frequency. It suits low-power amplification and switching stages, and it is the usual PNP complement to the S9013 NPN transistor.
Specifications
- Polarity
- PNP
- Collector-emitter voltage (VCE)
- 25 V
- Collector-base voltage (VCB)
- 40 V
- Emitter-base voltage (VEB)
- 5 V
- Maximum collector current (IC)
- 0.5 A
- Transition frequency (fT)
- 150 MHz
- Minimum DC current gain (hFE)
- 120
- Maximum junction temperature
- 150 °C
- Package
- TO-92
Frequently asked questions
What is the price of S9012 PNP Small Signal Transistor TO-92 in Egypt?
S9012 PNP Small Signal Transistor TO-92 currently costs 1 EGP in Egypt.
Where can I buy S9012 PNP Small Signal Transistor TO-92 in Egypt?
S9012 PNP Small Signal Transistor TO-92 is available from Microohm and Makers Electronics. Compare the offers above to find the best price.
Which NPN transistor should I pair with the S9012?
The usual complement is the S9013 NPN transistor, which is used in matching push-pull and complementary designs with the S9012.
How do I wire it as a high-side switch for an LED or small load?
Connect the emitter to the positive supply and the load between the collector and ground. Drive the base through a resistor from the microcontroller pin: pulling the base low turns the transistor on, and pulling it to the emitter voltage turns it off.
