Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W | 0.2 EGP0.4 | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 0.2 EGP
About this product

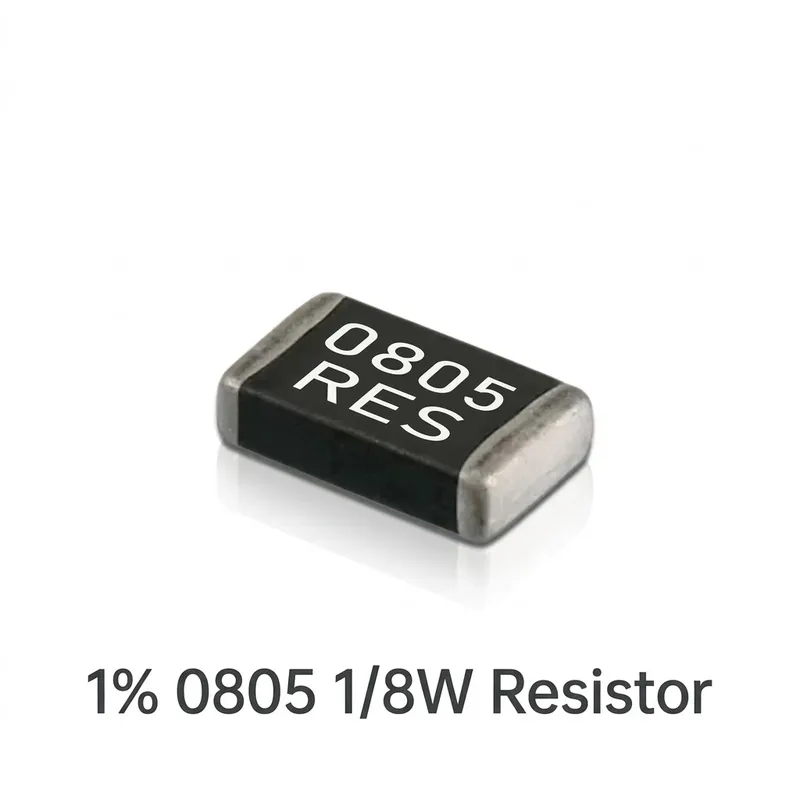

Royalohm 2.2 Ω surface-mount chip resistor in the 0805 package, with ±1% tolerance and 1/8 W (125 mW) rated power. A low-value part for PCB repair, assembly and prototyping. Non-polarised and hand-solderable with a fine tip.
Specifications
- Resistance
- 2.2 Ω
- Package
- 0805
- Tolerance
- ±1%
- Power rating
- 1/8 W (125 mW)
- Type
- SMD chip resistor
Frequently asked questions
What is the price of Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W in Egypt?
Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W currently costs 0.2 EGP in Egypt.
Where can I buy Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W in Egypt?
Royalohm 2.2Ω 0805 SMD Chip Resistor 1% 1/8W is available from Microohm. Compare the offers above to find the best price.
What is the maximum voltage across this resistor?
Using P = V²/R with 125 mW, the voltage should stay at or below about 0.52 V (√(0.125 × 2.2)). At this low value, the current limit matters too: 125 mW allows about 0.24 A (√(0.125 / 2.2)).
Is it polarised, and can I hand-solder it?
No, chip resistors are non-polarised, so orientation does not matter. An 0805 part can be hand-soldered with a fine tip, a little flux and tweezers, using a magnifier for placement.
