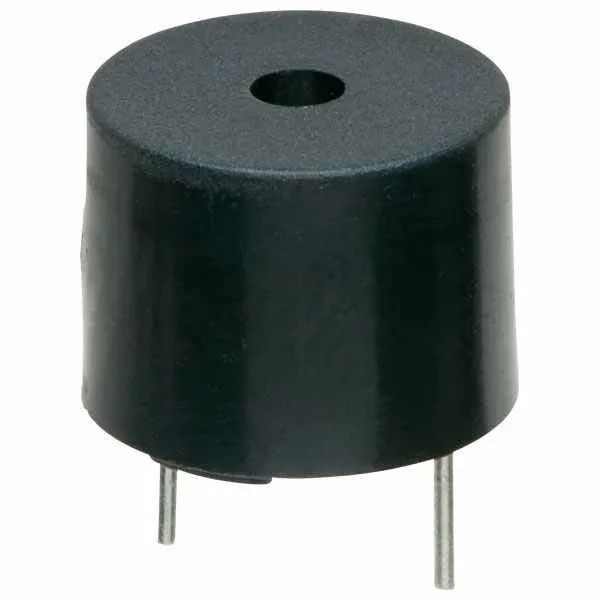

Round Buzzer 3 V, 2300 Hz Resonant Frequency
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A round 3 V buzzer with a resonant frequency of about 2300 Hz, inside the audible range. It can be driven directly from a 3 V microcontroller output to produce alert tones and beeps, with a minimum sound output of 90 dB at 10 cm.
Specifications
- Rated voltage
- 3 V
- Rated current
- 25 mA
- Resonant frequency
- 2300 ± 300 Hz
- Minimum sound output
- 90 dB at 10 cm
Frequently asked questions
Can I connect it to a 5 V Arduino pin?
It is rated for 3 V, so use a 3.3 V output or drive it through a transistor with a series resistor when using 5 V. A 25 mA rated current is above the recommended per-pin current for many boards, so a transistor is the safer choice.
How loud is it?
The minimum sound output is 90 dB measured at 10 cm, which is loud enough for alarms and status tones in small projects.
