ROHM MNR14E0APJ331 330Ω ±5% 4-Element 0603×4 Resistor Array
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Resistor Networks & Arrays SMD 330Ω ±5% 4 63mW ±200ppm/℃ 0603×4 | 0.5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 0.5 EGP
About this product

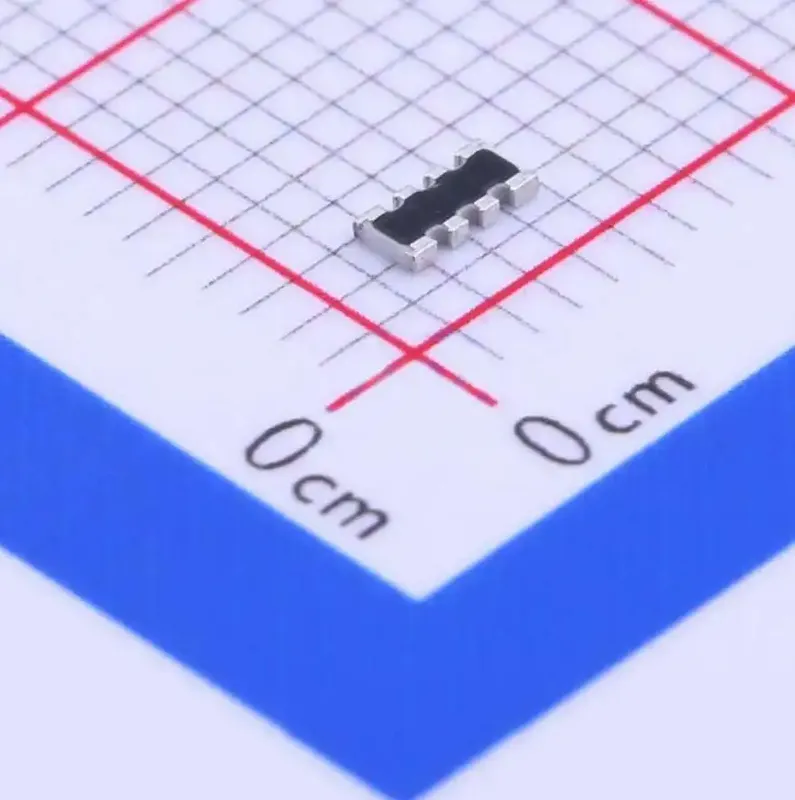

A surface-mount resistor array from ROHM with four 330 Ω resistors in a 0603×4 package with 8 pins. Each element is rated 63 mW with ±5% tolerance and ±200 ppm/°C temperature coefficient. It is useful for pull-up, pull-down or series resistors on several signal lines, saving board space compared with individual chip resistors.
Specifications
- Resistance per element
- 330 Ω
- Number of resistors
- 4
- Number of pins
- 8
- Power per element
- 63 mW
- Tolerance
- ±5%
- Temperature coefficient
- ±200 ppm/°C
- Package
- 0603×4
Frequently asked questions
What is the price of ROHM MNR14E0APJ331 330Ω ±5% 4-Element 0603×4 Resistor Array in Egypt?
ROHM MNR14E0APJ331 330Ω ±5% 4-Element 0603×4 Resistor Array currently costs 0.5 EGP in Egypt.
Where can I buy ROHM MNR14E0APJ331 330Ω ±5% 4-Element 0603×4 Resistor Array in Egypt?
ROHM MNR14E0APJ331 330Ω ±5% 4-Element 0603×4 Resistor Array is available from Makers Electronics. Compare the offers above to find the best price.
Can I use it at 5 V without exceeding the power rating?
Check the current first. At 5 V through 330 Ω, current is about 15 mA and power about 75 mW, which exceeds the 63 mW per element rating. Use a higher value or a lower voltage for that line.
How do I wire the array correctly?
Check the pin-to-resistor mapping in the ROHM datasheet before wiring, because the pins are not the same as four separate resistors.
