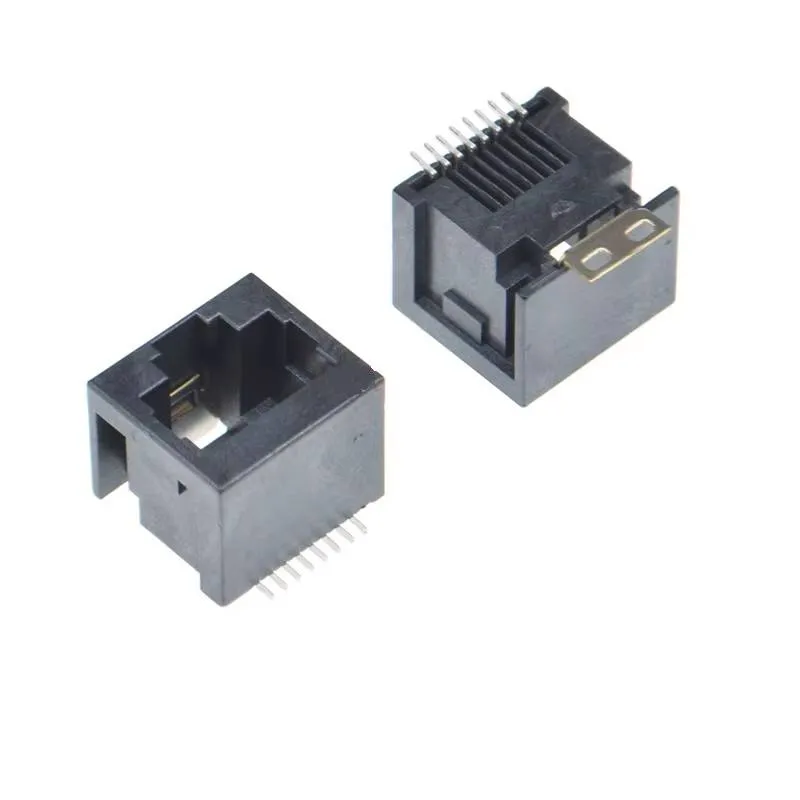

RJ45 Female Network Socket Vertical SMD Mount
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A vertical SMD-mount RJ45 female socket for Ethernet connections on PCBs. It accepts standard RJ45 network plugs and is used when adding a wired network port to a custom board or module.
Specifications
- Connector type
- RJ45 female socket
- Mounting
- SMD
- Orientation
- Vertical
- Positions
- 8 (8P8C)
Frequently asked questions
Does this socket include integrated magnetics?
The listing does not state this. Check the datasheet: if the socket has no integrated magnetics, an Ethernet PHY design needs external isolation transformers between the PHY and the socket.
Which wiring standard should I use for the cable?
Standard Ethernet cables use the T568A or T568B wiring standard for the 8 contacts. Use the same standard at both ends of a straight-through cable.
