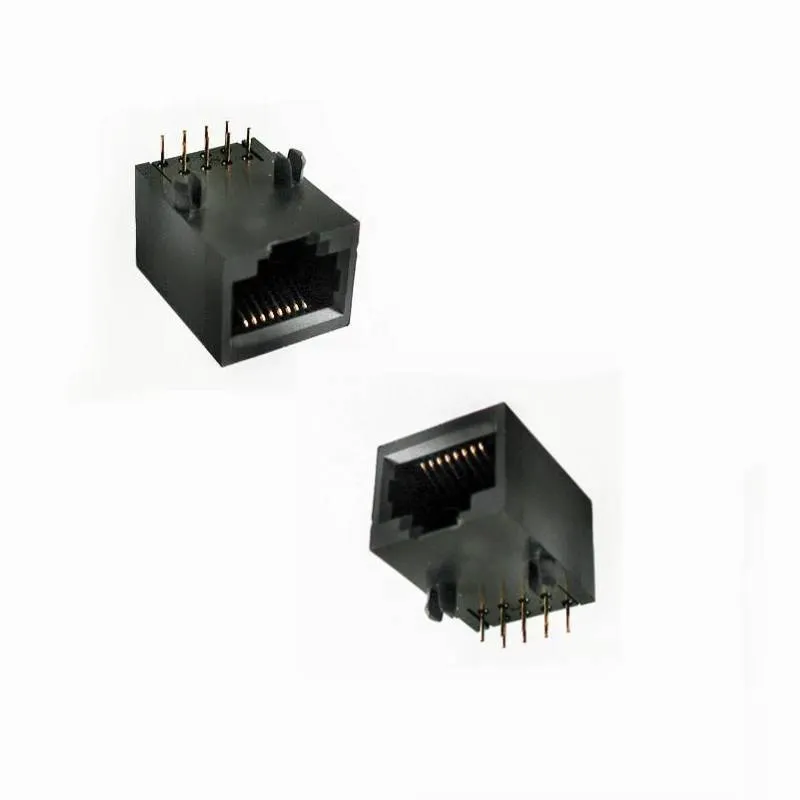

RJ45 8P8C Ethernet Connector, Through-Hole PCB Mount
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
An 8P8C RJ45 modular jack for Ethernet connections, designed for through-hole mounting on a PCB. The listing states it is compatible with CAT and UDP cables. The pinout shown in the listing follows the T568B color sequence, which is useful when wiring cables or embedded boards.
Specifications
- Connector type
- RJ45 8P8C
- Mounting
- Through-hole PCB mount
- Compatible cables
- CAT and UDP
- Pinout standard
- T568B (as listed)
Frequently asked questions
Which pins are used for 10/100 Ethernet?
For 10/100 Mbps Ethernet, pins 1, 2, 3 and 6 carry the transmit and receive pairs. Pins 4, 5, 7 and 8 are not used in 10/100 operation.
Which wiring standard does the pinout follow?
The pin-to-color mapping listed follows T568B. Use the same standard at both ends of a straight-through cable, and check that your crimping matches the standard you choose.
