PCF8574T I2C 8-Bit GPIO Expander Module
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | I2C GPIO Expander Module PCF8574T | 137 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 137 EGP
About this product

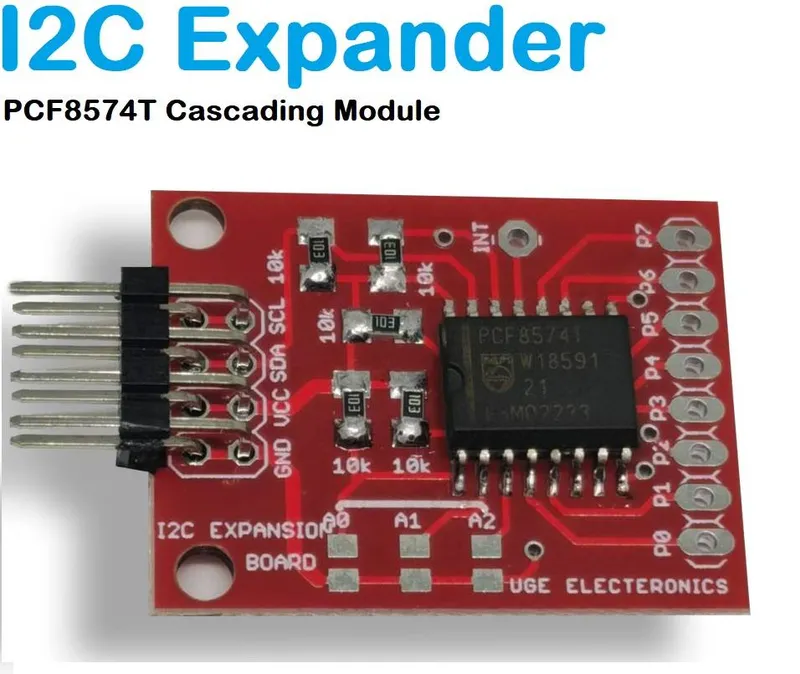

An I2C expansion module built around the PCF8574T 8-bit remote I/O expander chip, adding eight general-purpose I/O pins over a two-wire I2C bus. Up to 8 modules can share the same bus, providing up to 64 I/O ports, which helps when a microcontroller runs short of pins.
Specifications
- Chip
- PCF8574T
- Interface
- I2C
- I/O ports
- 8-bit parallel
- Working voltage
- 2.5–6 V
- Max modules on one bus
- 8 (up to 64 I/O)
- Connectors
- I2C pin header and I2C connector
Frequently asked questions
What is the price of PCF8574T I2C 8-Bit GPIO Expander Module in Egypt?
PCF8574T I2C 8-Bit GPIO Expander Module currently costs 137 EGP in Egypt.
Where can I buy PCF8574T I2C 8-Bit GPIO Expander Module in Egypt?
PCF8574T I2C 8-Bit GPIO Expander Module is available from UGE. Compare the offers above to find the best price.
What I2C address does it use?
The PCF8574 responds on addresses 0x20 to 0x27, selected by its A0, A1 and A2 address pins. Check the board silkscreen and address pads or jumpers to see how the address is set on your module.
How do I wire it to my board?
Connect SDA and SCL to the I2C pins of your board, then connect VCC and GND. The working range is 2.5 to 6 V, so match the supply and logic level to your board. Many modules include pull-up resistors, so avoid adding extra pull-ups unless your module needs them.
