Oval Red LED 3.8x5mm High Intensity
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Oval Red LED 3.8x5mm | 0.5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 0.5 EGP
About this product

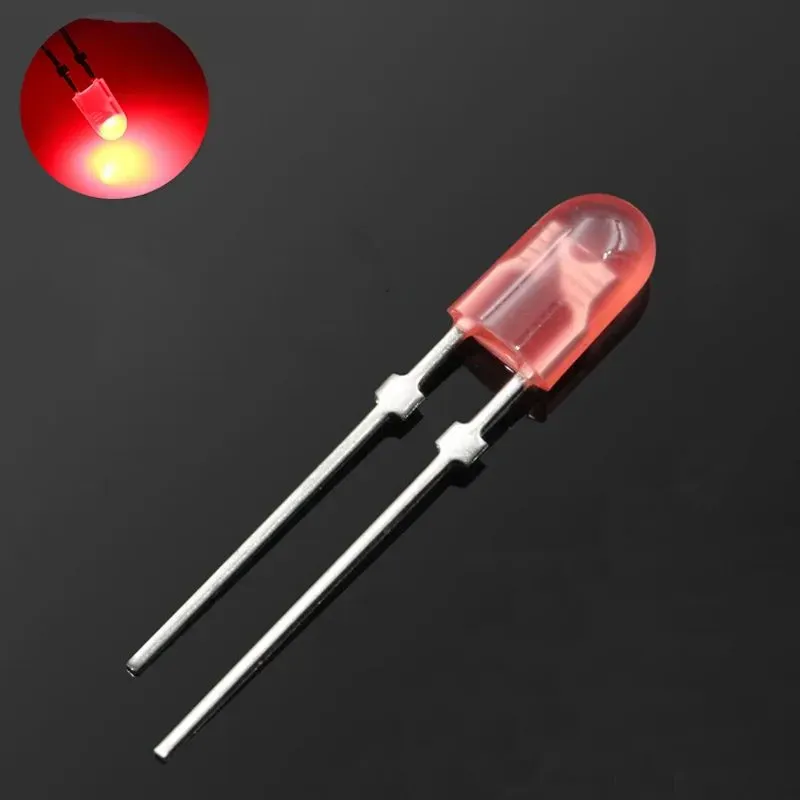

An oval red LED measuring 3.8 x 5mm, with high luminous intensity and a well-defined radiation pattern. Its forward voltage is 2.2-2.6V with a rated forward current of 50mA. It suits indicator lights and status displays in electronic projects.
Specifications
- Color
- Red
- Shape
- Oval, 3.8x5mm
- Forward Voltage
- 2.2V-2.6V
- Forward Current
- 50mA
- Power Dissipation
- 90mW
- Reverse Voltage
- 5V
- Operating Temperature
- -30°C to 80°C
Frequently asked questions
What is the price of Oval Red LED 3.8x5mm High Intensity in Egypt?
Oval Red LED 3.8x5mm High Intensity currently costs 0.5 EGP in Egypt.
Where can I buy Oval Red LED 3.8x5mm High Intensity in Egypt?
Oval Red LED 3.8x5mm High Intensity is available from Makers Electronics. Compare the offers above to find the best price.
Do I need a current-limiting resistor?
Yes. Use a series resistor calculated as R = (supply voltage - forward voltage) / desired current. For a 5V supply, a 2.6V forward voltage and 20mA, R = 2.4V / 0.02A = 120 ohms.
Can I connect it directly to a 5V supply?
No. Without a series resistor the LED can draw more than its 50mA rating and be damaged. Also avoid reverse voltage above its 5V reverse rating.
