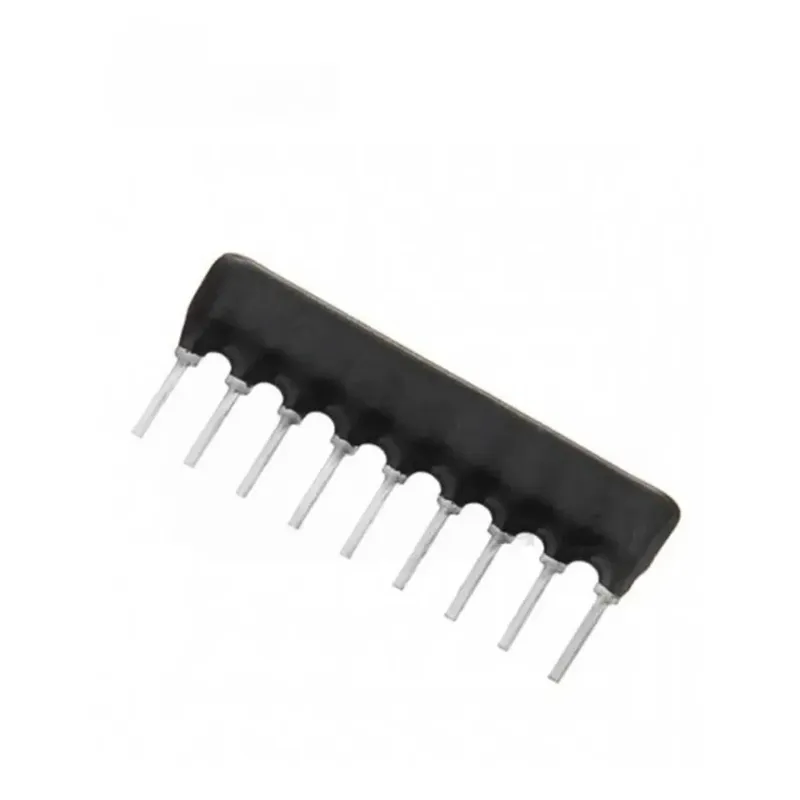

Network Resistor 330 ohm 9-Pin Common SIP
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Network Resistor 330 ohm 9 pin | 4 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 4 EGP
About this product
A 330 ohm resistor network in a 9-pin single-in-line (SIP) package with a common pin, giving eight resistors that share one terminal. It has 2% tolerance and a 0.125 W rating, and it is useful for LED current limiting, pull-up or pull-down biasing and saving space on a PCB.
Specifications
- Resistance
- 330 ohm
- Pins
- 9
- Configuration
- Common pin (8 resistors)
- Tolerance
- 2%
- Power rating
- 0.125 W
- Package
- SIP
Frequently asked questions
What is the price of Network Resistor 330 ohm 9-Pin Common SIP in Egypt?
Network Resistor 330 ohm 9-Pin Common SIP currently costs 4 EGP in Egypt.
Where can I buy Network Resistor 330 ohm 9-Pin Common SIP in Egypt?
Network Resistor 330 ohm 9-Pin Common SIP is available from Makers Electronics. Compare the offers above to find the best price.
How do I wire the common pin?
Connect the common pin to one side of all resistors, for example VCC for pull-ups. Each of the other 8 pins is the free end of one resistor.
What is the maximum current per resistor?
From P = I²R, a 0.125 W rating at 330 ohm limits current to about 19.5 mA per resistor. Keep each channel below that for continuous operation.
