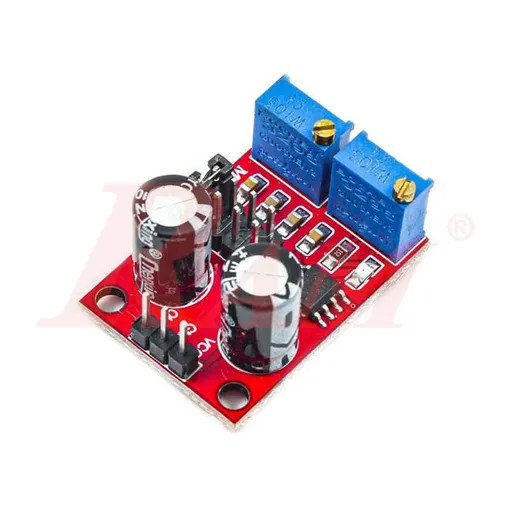

NE555 Adjustable Duty Cycle Square Wave Generator Module Kit
Part number: NE555Other
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A kit module built around the NE555 timer IC that generates a square wave whose duty cycle can be adjusted on the board. It is a practical learning project for students studying timers, PWM concepts and oscillator circuits.
Specifications
- IC
- NE555 timer
- Output
- Square wave
- Adjustment
- Duty cycle
- Type
- Kit module
Frequently asked questions
What is the NE555 doing in this module?
The NE555 operates as an astable oscillator, generating a continuous square wave whose timing is set by the components around it.
Can the output drive a motor or relay directly?
No. The NE555 output has limited current capability. Drive motors, relays or other higher-current loads through a transistor or MOSFET stage.
