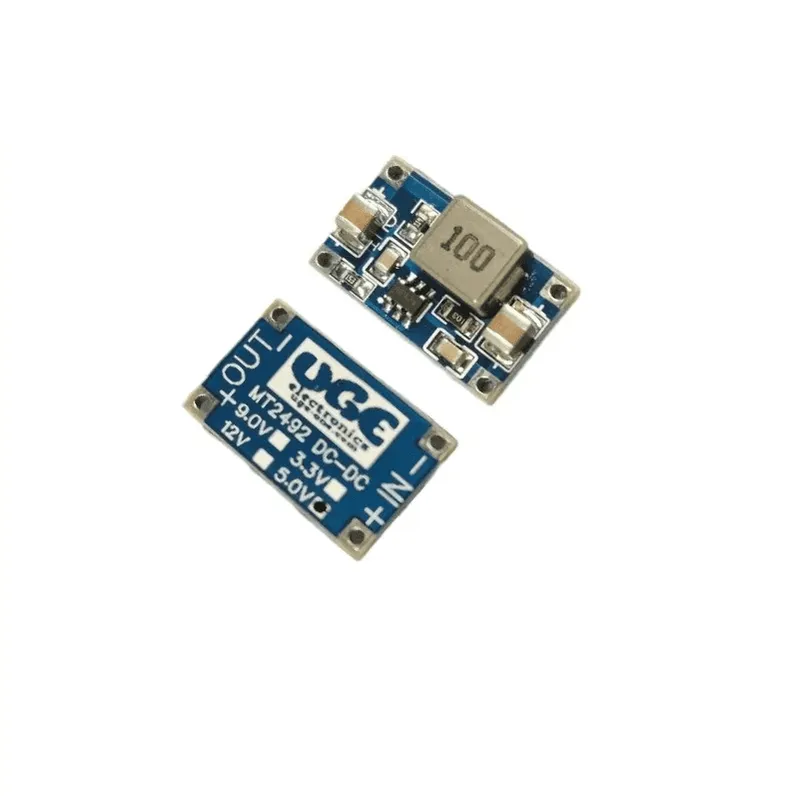

MT2492 DC-DC Step-Down Module 5V 2A 600kHz Fixed Output
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A compact step-down DC-DC converter module built around the MT2492 controller. It gives a fixed 5 V output up to 2 A from a 4.5 V to 16 V DC input and switches at 600 kHz. Listed protections include overcurrent, thermal shutdown, inrush current limiting and soft start, which suits powering 5 V logic and small boards from a higher DC source.
Specifications
- Controller IC
- MT2492
- Output voltage
- 5 V fixed / 5 فولت ثابت
- Maximum output current
- 2 A / 2 أمبير
- Input voltage range
- 4.5 V to 16 V DC / من 4.5 إلى 16 فولت مستمر
- Switching frequency
- 600 kHz / 600 كيلوهرتز
- Maximum efficiency
- Up to 96% / حتى 96%
- Operating temperature
- -40°C to +85°C / من -40 إلى 85 درجة مئوية
Frequently asked questions
Which pads do I connect for input and output?
Connect the source to the pads labeled IN+ and IN-. The regulated 5 V output is taken from the pads labeled OUT+ and OUT-.
Can I power it from a 12 V supply?
Yes, the input range is 4.5 V to 16 V DC, so a 12 V DC supply is within range. Keep the load on the output at or below the 2 A maximum.
