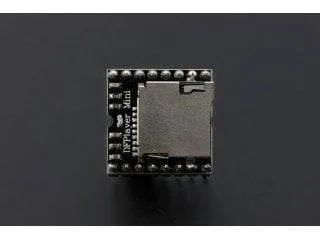

MP3 Player Mini Module with TF Card Support (Serial Control)
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A compact, low-cost MP3 player module that decodes MP3, WAV and WMA files from a TF card formatted as FAT16 or FAT32, and drives a speaker directly. It is controlled through a simple serial (RX/TX) interface, so it can run standalone with buttons or with an Arduino UNO or any board with serial capability. Typical uses include voice prompts and audio announcements.
Specifications
- Audio formats
- MP3, WAV, WMA
- Storage
- TF card, FAT16 / FAT32
- Control interface
- Serial (RX/TX)
- Audio output
- Direct speaker output
Frequently asked questions
How do I control the module from an Arduino?
Connect the module's RX and TX pins to a serial-capable board (hardware or software serial), share a common ground, and send the module's serial commands from your sketch. Check the module's logic voltage before a direct connection; if it differs from your board's voltage, use a level shifter.
What kind of memory card does it need?
The module reads a TF (microSD) card formatted as FAT16 or FAT32. Place the audio files on the card in a format the module supports, such as MP3, WAV or WMA.
