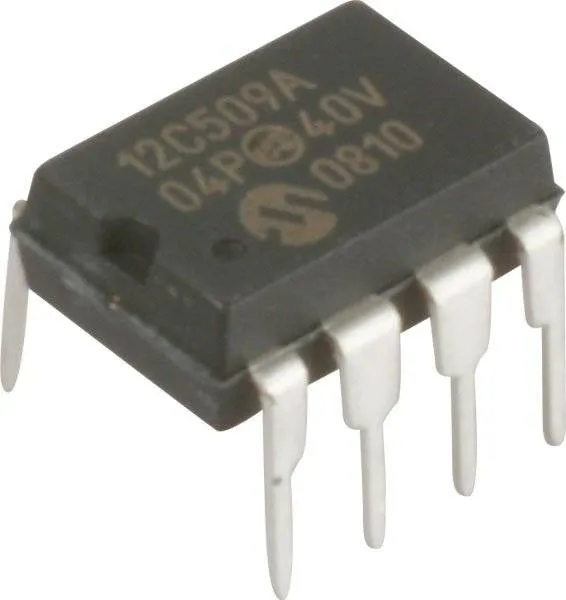

Microchip PIC12C509A-04P 8-bit Microcontroller, 8-pin DIP, 4 MHz
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The PIC12C509A-04P is an 8-bit PIC microcontroller in an 8-pin DIP package with a maximum clock of 4 MHz. It provides 6 I/O pins rated for 25 mA source/sink per pin, four oscillator options including an internal 4 MHz RC oscillator with programmable calibration, and power-on reset. Suited to small single-purpose control circuits.
Specifications
- Package
- 8-pin DIP
- Maximum clock
- 4 MHz
- I/O pins
- 6
- Current per I/O pin
- 25 mA source/sink
- Internal oscillator
- 4 MHz RC with programmable calibration
- Power-on reset
- Yes
- Memory type
- One-time programmable (OTP)
Frequently asked questions
Can I reprogram it multiple times?
No. The PIC12C series is one-time programmable (OTP), so the code cannot be erased and rewritten. For projects that need reprogramming, choose a flash-based part from the same family.
How many pins are available for I/O?
The part provides 6 I/O pins. The remaining pins of the 8-pin package are used for supply, ground and the oscillator/reset functions.
