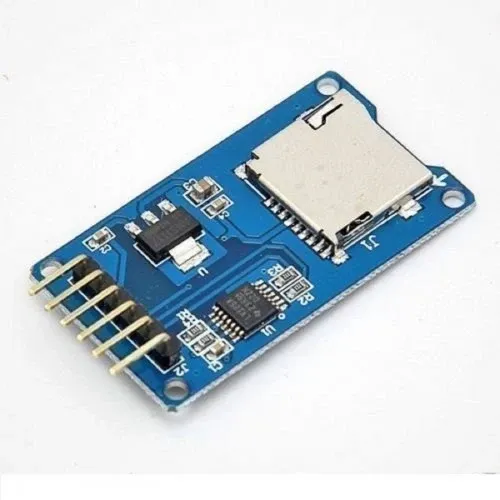

Micro SD Card SPI Module 3.3V for ESP32 and STM32
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A microSD card module that connects to a microcontroller over SPI and operates at 3.3 V logic. It adds file storage for data logging and file handling in ESP32 and STM32 projects, supporting microSD cards up to 2 GB and microSDHC cards up to 32 GB.
Specifications
- Working voltage
- 3.3 V
- Interface
- SPI
- Compatible card
- MicroSD (TF)
- Supported capacity
- microSD up to 2 GB, microSDHC up to 32 GB
- Module size
- 20 x 28 mm
- Typical current
- 80 mA
Frequently asked questions
How do I wire the SD module to an ESP32 or STM32?
Connect VCC to 3.3 V and GND to ground, then connect the SPI lines (MOSI, MISO, SCK) and a chip-select pin from the module to the matching pins on your microcontroller. Use the pin mapping in your library.
Can I connect it to a 5 V Arduino board?
The module is rated for 3.3 V working voltage and 3.3 V interface levels. With a 5 V board, use a level shifter on the signal lines and power the module from 3.3 V.
