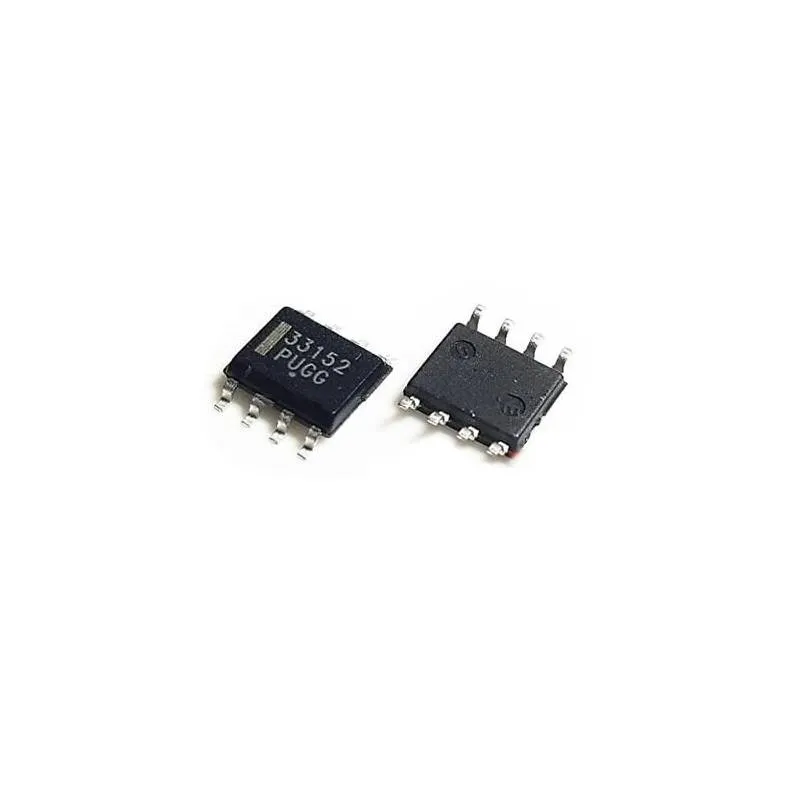

MC33152DR2G Dual Non-Inverting MOSFET Gate Driver SOIC-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
MC33152DR2G is a dual non-inverting high-speed MOSFET gate driver in an SOIC-8 package. It drives the gates of power MOSFETs from low-level control signals with 1.5 A peak output current and a 36 ns propagation delay, suited to switching power stages, motor drivers and DC-DC converters.
Specifications
- Channels
- 2 (dual, non-inverting)
- Supply voltage range
- 6.1 V to 18 V
- Peak output current
- 1.5 A
- Propagation delay
- 36 ns
- Rise time
- 32 ns
- Input threshold voltage
- 1.67 V with 170 mV hysteresis
- Operating temperature range
- -40 °C to 85 °C
- Package
- SOIC-8
Frequently asked questions
What is this driver used for?
It is used between a PWM or logic controller and a power MOSFET, so the MOSFET switches quickly and fully. Typical applications include motor drivers, half-bridges and switching power converters.
Can it run from a 5 V supply?
No. The supply range starts at 6.1 V, so use a supply between 6.1 V and 18 V, such as 12 V. The inputs switch at a 1.67 V threshold, so 3.3 V or 5 V logic signals can drive them.
