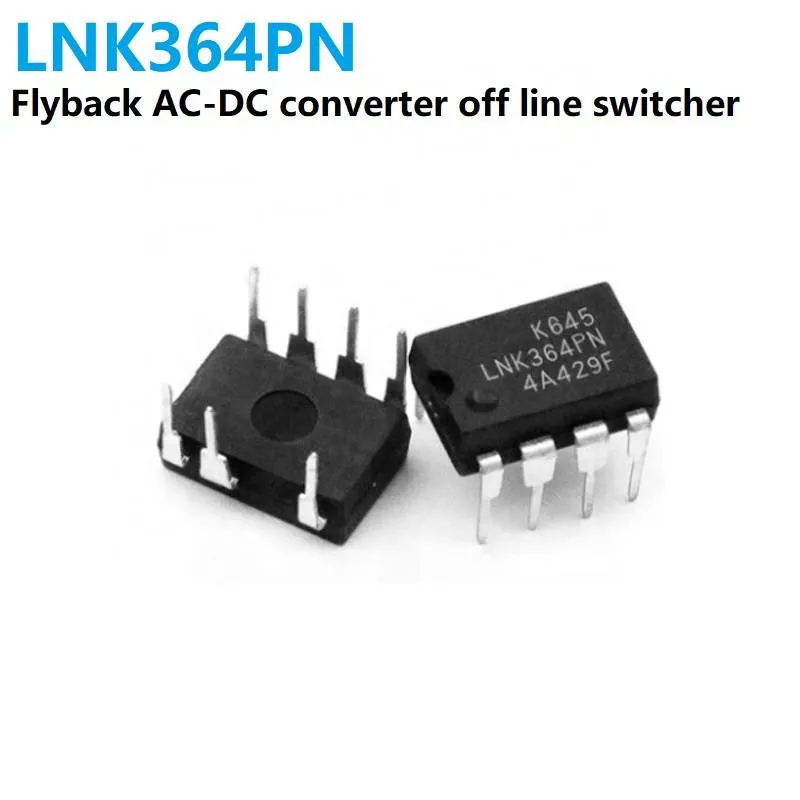

LNK364PN LinkSwitch-XT Offline Flyback Switcher IC DIP-8
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 13 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
LNK364PN is a LinkSwitch-XT offline flyback switcher IC that integrates a 700 V power MOSFET, oscillator, control and protection circuitry in a single 8-pin DIP package. It is used to build compact, isolated AC-DC flyback power supplies for appliances, chargers and standby supplies. A flyback transformer and external components are required.
Specifications
- Integrated MOSFET voltage
- 700 V
- Topology
- Offline flyback
- Package
- DIP-8
- Bias winding
- Not required (self-biased from DRAIN pin)
- Protection
- Auto-restart, cycle-by-cycle current limit, thermal shutdown
- Frequency jitter
- Yes, for EMI reduction
Frequently asked questions
Can I connect it directly to mains?
It is an offline device designed for rectified mains through a flyback transformer, so the circuit operates at high voltage. Only experienced designers should build it, using proper fusing, isolation, creepage spacing and safety testing before any connection to mains.
Does it need a separate bias winding on the transformer?
No. According to the LinkSwitch-XT design, the IC is self-biased from the DRAIN pin during start-up and operation, which removes the need for a bias winding and its associated circuitry.
