LM317T Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Future ElectronicsCheapest | LM317T - 1.2V to 37V Adjustable Voltage Regulator | 6 EGP | View in store |
 Microohm | LM317T Adjustable Voltage Positive Regulator 1.5A | 6 EGP10 | View in store |
 Makers Electronics | LM317 Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220 | 7 EGP | View in store |
 UGE | Voltage Regulator Adjustable LM317T | 11.5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 6 EGP
About this product

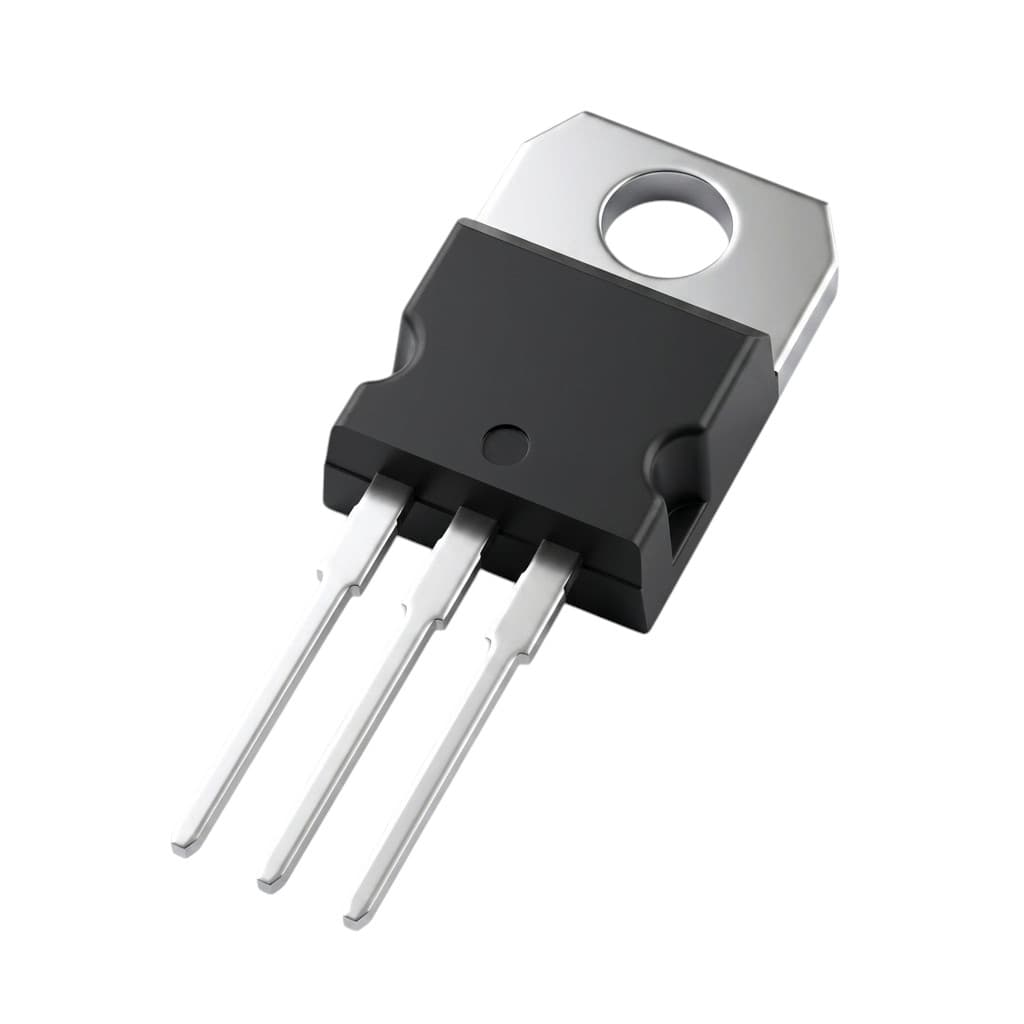

The LM317T is a three-terminal adjustable positive linear voltage regulator in a TO-220 package. It provides an output from 1.2V to 37V at up to 1.5A and needs only two external resistors to set the output voltage. It is commonly used to build regulated supply rails and bench-style power circuits for hobby and student projects.
Specifications
- Output voltage
- 1.2V to 37V adjustable
- Output current
- 1.5A max
- Package
- TO-220
- Type
- Three-terminal positive adjustable linear regulator
- Reference voltage
- 1.25V typical
- Protection
- Thermal overload, short circuit, safe area
- Output setting
- Two external resistors
Frequently asked questions
What is the price of LM317T Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220 in Egypt?
LM317T Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220 currently costs between 6 and 11.5 EGP across 4 offers in Egypt.
Where can I buy LM317T Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220 in Egypt?
LM317T Adjustable Positive Voltage Regulator 1.2V to 37V 1.5A TO-220 is available from Future Electronics, Microohm, Makers Electronics, and UGE. Compare the offers above to find the best price.
How do I set the output voltage of the LM317T?
Connect a resistor R1 (commonly 240 ohm) between OUT and ADJ, and a variable resistor R2 between ADJ and GND. The output is approximately Vout = 1.25V x (1 + R2/R1), plus a small adjust-pin current term. Adjust R2 to reach the target voltage.
What input voltage does the LM317T need?
The input must be higher than the output by the regulator's dropout voltage, typically around 2V to 3V, to keep regulation. Use a heat sink when the input-output difference and current are high, because the excess power is dissipated as heat.
