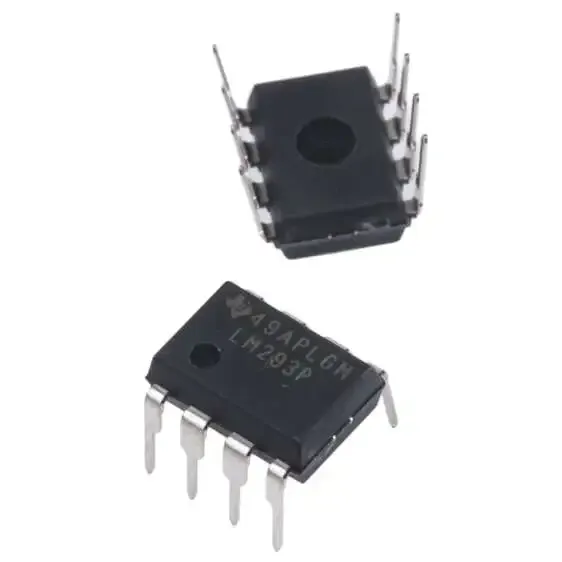

LM293P Dual Differential Comparator DIP-8
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | LM293 Dual Differential Comparator DIP-8 | 20 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 20 EGP
About this product
LM293P is a dual differential comparator that compares an input signal against a reference voltage, or two signals against each other. It runs from a single supply of up to 30V and has open-collector outputs, so it can switch higher-voltage logic levels with an external pull-up resistor. It is used for level detection, threshold alarms and zero-crossing circuits.
Specifications
- Comparators per IC
- 2 (dual)
- Maximum supply voltage
- 30 V
- Output type
- Open collector
- Input stage
- Darlington PNP
- Package
- DIP-8
Frequently asked questions
What is the price of LM293P Dual Differential Comparator DIP-8 in Egypt?
LM293P Dual Differential Comparator DIP-8 currently costs 20 EGP in Egypt.
Where can I buy LM293P Dual Differential Comparator DIP-8 in Egypt?
LM293P Dual Differential Comparator DIP-8 is available from Makers Electronics. Compare the offers above to find the best price.
Why does the output not go high by itself?
The output is open-collector, so it can only pull the line low. Connect a pull-up resistor from the output to the supply rail that should represent a logic high.
Can I use it with 3.3V microcontroller inputs?
Yes. If the pull-up resistor is connected to 3.3V, the output swings between ground and 3.3V and can drive a 3.3V logic input. The same method works for 5V logic.
