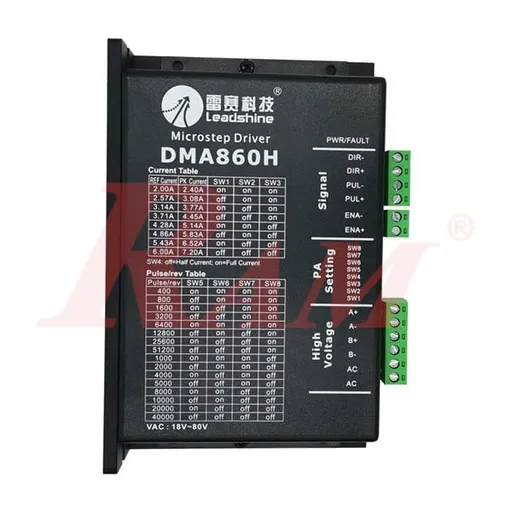

Leadshine DMA860H 2-Phase Digital Stepper Driver, 7.2A
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
The Leadshine DMA860H is a digital driver for 2-phase stepper motors, with a maximum output current of 7.2 A. It accepts 36 to 112 VDC or 24 to 80 VAC input and is listed as a replacement for the DM860H. It is commonly used in CNC machines, 3D printers and automation projects that need a step and direction controlled stepper driver.
Specifications
- Motor type
- 2-phase stepper
- Input voltage
- 36-112 VDC or 24-80 VAC
- Max output current
- 7.2 A
- Driver type
- Digital
- Replaces
- DM860H
Frequently asked questions
What control signals does the DMA860H need?
It is a digital step driver controlled by pulse (PUL), direction (DIR) and enable (ENA) inputs, typically connected to a CNC controller or a microcontroller board that generates step and direction signals.
Which power supply can I use with the DMA860H?
The driver accepts 36 to 112 VDC or 24 to 80 VAC. Keep the supply within the selected input range and make sure it can deliver enough current for the motor at the set driver current.
