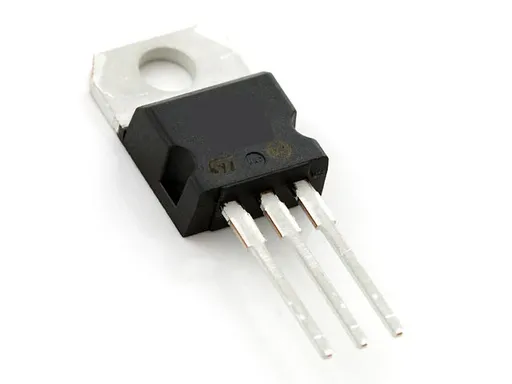

L7805CV 5V Positive Voltage Regulator (TO-220)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 RAM Electronics | L7805CV - CHINA ST | 5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 5 EGP
About this product
The L7805CV is a fixed 5 V positive linear voltage regulator in a TO-220 package. It is widely used to power 5 V logic such as microcontrollers and TTL or CMOS circuits from a higher unregulated DC supply, with input and output capacitors recommended for stable operation.
Specifications
- Output voltage
- 5 V
- Output current
- 1.5 A
- Maximum input voltage
- 35 V
- Package
- TO-220
- Regulator type
- Positive fixed linear regulator
Frequently asked questions
What is the price of L7805CV 5V Positive Voltage Regulator (TO-220) in Egypt?
L7805CV 5V Positive Voltage Regulator (TO-220) currently costs 5 EGP in Egypt.
Where can I buy L7805CV 5V Positive Voltage Regulator (TO-220) in Egypt?
L7805CV 5V Positive Voltage Regulator (TO-220) is available from RAM Electronics. Compare the offers above to find the best price.
What is the pinout of the L7805CV?
With the marked side facing you and the leads pointing down, pin 1 is the input, pin 2 is ground, and pin 3 is the output.
What input voltage does it need?
The input must be at least about 2 V above the 5 V output and must not exceed 35 V. A 9 V or 12 V supply is common. The extra voltage is dissipated as heat, so use a heatsink when the voltage difference or current is high.
