L293D Dual Channel Motor Driver Board V2 (IC Not Included)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | L293D Dual Channel Motor Driver (Version 2) without IC | 40 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 40 EGP
About this product

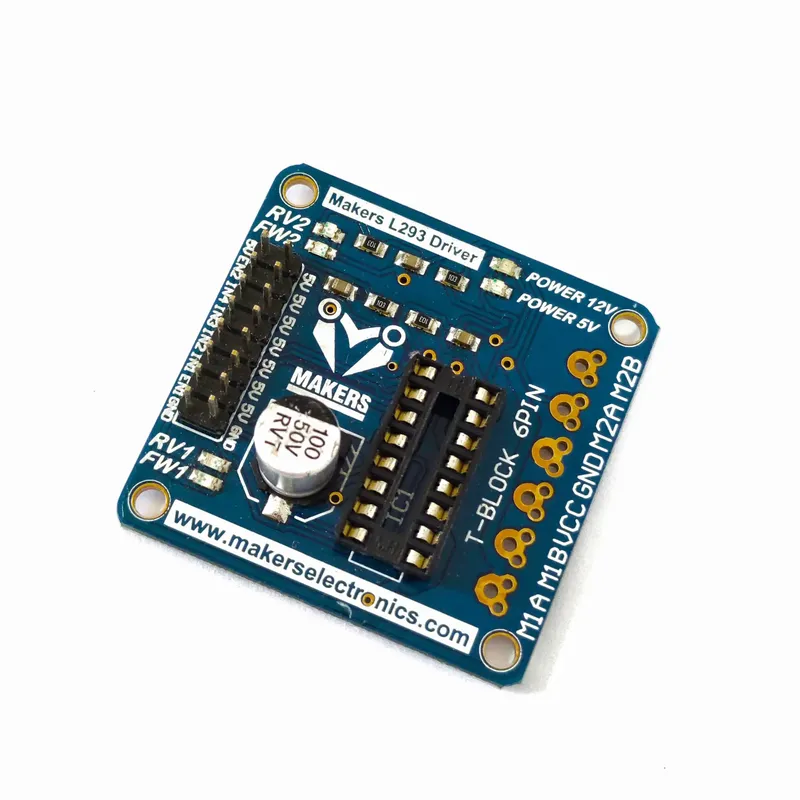

A dual-channel motor driver breakout board designed around the L293D quadruple half-H driver. The board is supplied without the L293D IC, which must be purchased separately. It drives two DC motors or one stepper motor with 600mA continuous current per channel.
Specifications
- Output current per channel
- 600 mA
- Peak output current per channel
- 1.2 A (non-repetitive)
- Working voltage
- 5-12 V
- Channel enable
- Yes, per channel
- Protection
- Overtemperature protection
- Logic low input voltage
- Up to 1.5 V
- Dimensions
- 43 x 43 mm
Frequently asked questions
What is the price of L293D Dual Channel Motor Driver Board V2 (IC Not Included) in Egypt?
L293D Dual Channel Motor Driver Board V2 (IC Not Included) currently costs 40 EGP in Egypt.
Where can I buy L293D Dual Channel Motor Driver Board V2 (IC Not Included) in Egypt?
L293D Dual Channel Motor Driver Board V2 (IC Not Included) is available from Makers Electronics. Compare the offers above to find the best price.
Does the board include the L293D IC?
No. The board is sold without the L293D IC. You need to buy an L293D separately and insert it into the board before use.
How do I wire DC motors to this board?
Connect each motor to an OUT pair, use the IN pins from your microcontroller to set direction, and use the EN pins with PWM to control speed. Motor supply should be within the 5-12V working range.
