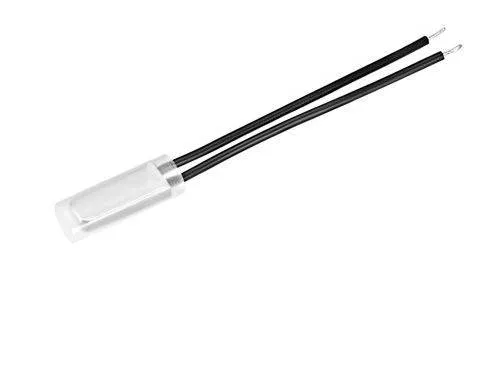

KSD9700 Thermal Protector Switch NC 140°C 5A 250V Thermostat
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | KSD9700 Temperature Control Switch Normally Closed 140°C degree Thermostat | 17.1 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 17.1 EGP
About this product
The KSD9700 is a normally closed bimetal thermal protector that opens the circuit when its temperature reaches 140°C. It is used to protect motors, heaters, transformers and other equipment from overheating. It is rated 5A at 250V and is supplied in a metal or plastic housing.
Specifications
- Switch type
- Normally closed (NC)
- Action temperature
- 140 °C
- Rated voltage
- 250 V
- Overload current
- 5 A
- Rated current
- DC 12V/12A, DC 24V/10A, AC 125V/8A, AC 250V/5A
- Insulation resistance
- > 100 MΩ
- Life time
- > 10,000 cycles
- Metal case size
- 20 mm x 7.4 mm x 3.8 mm
Frequently asked questions
What is the price of KSD9700 Thermal Protector Switch NC 140°C 5A 250V Thermostat in Egypt?
KSD9700 Thermal Protector Switch NC 140°C 5A 250V Thermostat currently costs 17.1 EGP in Egypt.
Where can I buy KSD9700 Thermal Protector Switch NC 140°C 5A 250V Thermostat in Egypt?
KSD9700 Thermal Protector Switch NC 140°C 5A 250V Thermostat is available from UGE. Compare the offers above to find the best price.
How do I install it to protect a motor or heater?
Wire it in series with the load so that the circuit opens when the switch trips. It senses temperature by contact, so mount it firmly against the part you want to protect.
What current can it switch safely?
Use the rated current table: 5A at AC 250V, and lower values for DC or for other voltages. Keep the load within these ratings to avoid contact damage.
