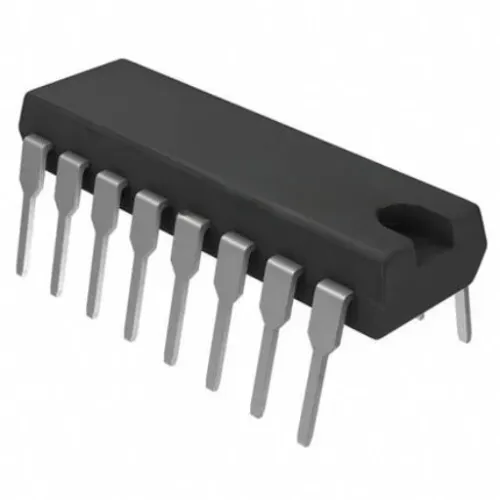

KA3525A Regulating Pulse Width Modulator IC DIP-16
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | KA3525A Regulating Pulse Width Modulator 20V IC DIP-16 | 35 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 35 EGP
About this product
KA3525A is a regulating pulse width modulator IC in a 16-pin DIP package, from the UC3525 family. It generates the PWM drive signals used in switch-mode power supplies (SMPS), DC-DC converters and inverters, and includes protection functions such as undervoltage lockout and soft start.
Specifications
- Package
- DIP-16
- Supply voltage
- 8 V to 35 V (datasheet)
- Output configuration
- Dual push-pull outputs
- Output current
- 200 mA per output (datasheet)
- Oscillator frequency
- Up to 400 kHz (datasheet)
Frequently asked questions
What is the price of KA3525A Regulating Pulse Width Modulator IC DIP-16 in Egypt?
KA3525A Regulating Pulse Width Modulator IC DIP-16 currently costs 35 EGP in Egypt.
Where can I buy KA3525A Regulating Pulse Width Modulator IC DIP-16 in Egypt?
KA3525A Regulating Pulse Width Modulator IC DIP-16 is available from Makers Electronics. Compare the offers above to find the best price.
What external components does the KA3525A need?
It needs an external timing resistor (RT) and timing capacitor (CT) to set the oscillator frequency, plus a supply bypass capacitor. Use the formulas and recommended values in the Fairchild or UC3525 datasheet.
Can the KA3525A drive a power MOSFET directly?
It can drive small to medium MOSFET gates through a series gate resistor, since each output is rated for about 200 mA. For large MOSFETs or fast switching, add a dedicated gate driver stage.
