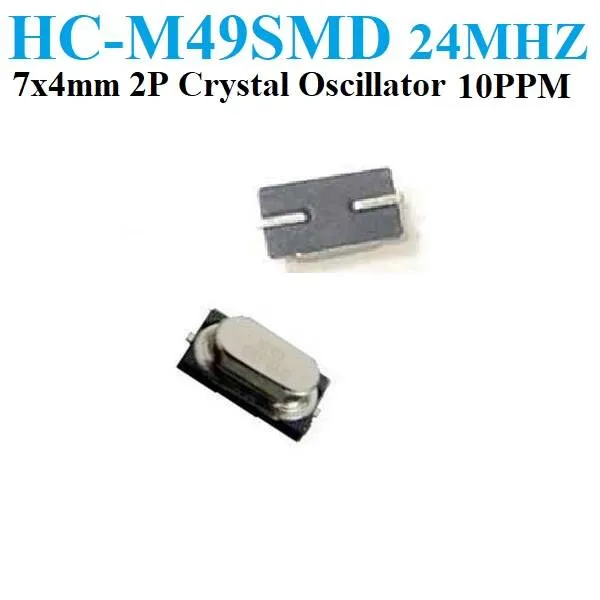

HC-M49SMD 24MHz SMD Quartz Crystal 12pF Load Capacitance
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | HC-M49SMD quartz crystal oscillator 24MHZ | 12.54 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 12.54 EGP
About this product
The HC-M49SMD is a 24MHz surface-mount quartz crystal in a compact HC-M49SMD enclosure, used as a clock reference for microcontrollers and digital circuits. It specifies a 12pF load capacitance, a maximum series resistance of 40Ω, and ±10 ppm frequency tolerance and temperature coefficient. It is suitable for compact PCB layouts.
Specifications
- Frequency
- 24 MHz
- Load capacitance
- 12 pF
- Max series resistance (ESR)
- 40 Ω
- Frequency tolerance
- ±10 ppm
- Temperature coefficient
- ±10 ppm
- Package
- HC-M49SMD (SMD)
Frequently asked questions
What is the price of HC-M49SMD 24MHz SMD Quartz Crystal 12pF Load Capacitance in Egypt?
HC-M49SMD 24MHz SMD Quartz Crystal 12pF Load Capacitance currently costs 12.54 EGP in Egypt.
Where can I buy HC-M49SMD 24MHz SMD Quartz Crystal 12pF Load Capacitance in Egypt?
HC-M49SMD 24MHz SMD Quartz Crystal 12pF Load Capacitance is available from UGE. Compare the offers above to find the best price.
What load capacitors should I use with this crystal?
The load capacitors C1 and C2 in the oscillator circuit are chosen from the 12pF load. A common approximation is C1 = C2 ≈ 2 × (CL − stray capacitance), which gives roughly 14 to 18 pF each depending on PCB stray capacitance. Confirm this with your MCU's oscillator guidance.
Can I use it with any microcontroller?
Only with microcontrollers whose oscillator circuit supports a 24MHz crystal and the matching load capacitance. Check the MCU datasheet for the maximum crystal frequency and recommended ESR limits.
