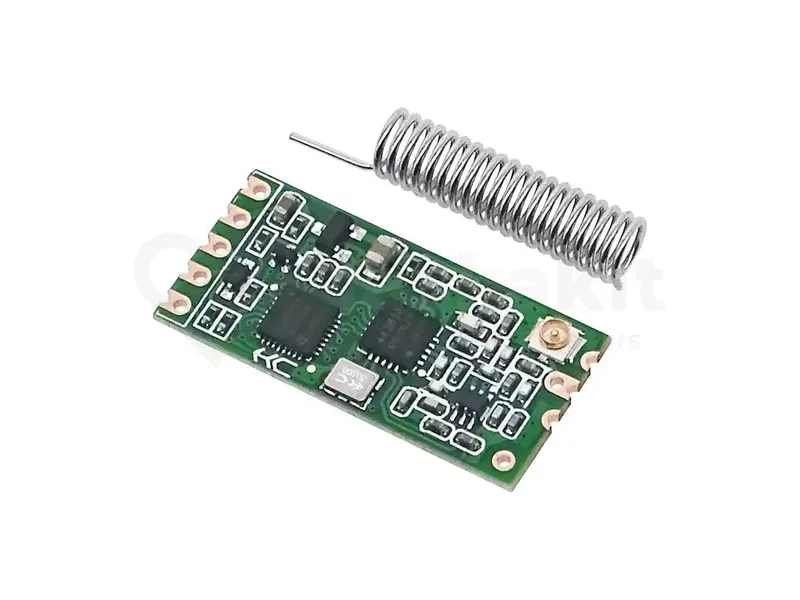

HC-12 v3.0 Wireless Serial Module 433MHz UART RF Data Link
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | HC-12 v3.0 Wireless Serial Module – 433MHz UART RF Data Link | 500 EGP600 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 500 EGP
About this product
HC-12 v3.0 is a 433MHz UART-to-RF transparent data link for half-duplex wireless serial communication between boards. It supports multiple channels across 433.4–473.0MHz, with selectable TX power up to 20dBm. Configuration is done with AT commands through the SET pin.
Specifications
- Frequency range
- 433.4–473.0 MHz
- Interface
- UART TTL
- Supply voltage
- 3.2–5.5 V
- Max TX power
- 20 dBm
- Duplex mode
- Half-duplex
- Configuration
- AT commands via SET pin
- Antenna connectors
- ANT1 (I-PEX/U.FL), ANT2
Frequently asked questions
What is the price of HC-12 v3.0 Wireless Serial Module 433MHz UART RF Data Link in Egypt?
HC-12 v3.0 Wireless Serial Module 433MHz UART RF Data Link currently costs 500 EGP in Egypt.
Where can I buy HC-12 v3.0 Wireless Serial Module 433MHz UART RF Data Link in Egypt?
HC-12 v3.0 Wireless Serial Module 433MHz UART RF Data Link is available from Microohm. Compare the offers above to find the best price.
How do I wire HC-12 to a microcontroller?
Connect VCC and GND to a 3.2–5.5 V supply and common ground. Cross the serial lines: the module TXD goes to the MCU RX pin, and the module RXD goes to the MCU TX pin. Confirm the logic level matches your board.
Do both ends of the link need HC-12 modules?
Yes. A link needs two modules set to the same channel and compatible settings. The link is transparent, so data sent on one UART is received on the other.
