Handheld Ultrasonic Flow Meter TDS-100H
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

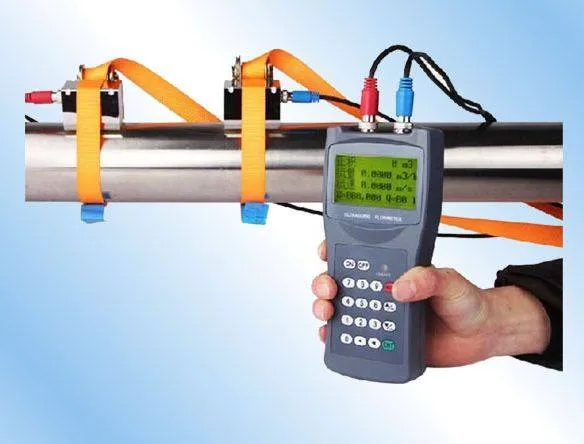

The TDS-100H is a handheld ultrasonic flow meter with a 4-line display showing instantaneous flow velocity, cumulative flow and signal status. It uses external clamp-on sensors, so no cutting of the pipe is required. It provides an isolated RS232 output for data export and optional pulse or frequency outputs.
Specifications
- Accuracy
- Better than 1%
- Repeatability
- Better than 0.2%
- Signal output
- Isolated RS232
- Optional output
- Pulse and frequency, 1-9999 Hz
- Power
- Built-in NiMH rechargeable battery, 10+ hours
- Display
- 4 lines
Frequently asked questions
Does the TDS-100H need to be installed inside the pipe?
No. The listing describes clamp-on sensors installed on the outside of the pipe, and the sensors can be plugged and unplugged.
How do I connect the TDS-100H to a computer?
Use the isolated RS232 output. A PC without a serial port needs a suitable RS232-to-USB adapter, since RS232 signal levels differ from USB.
