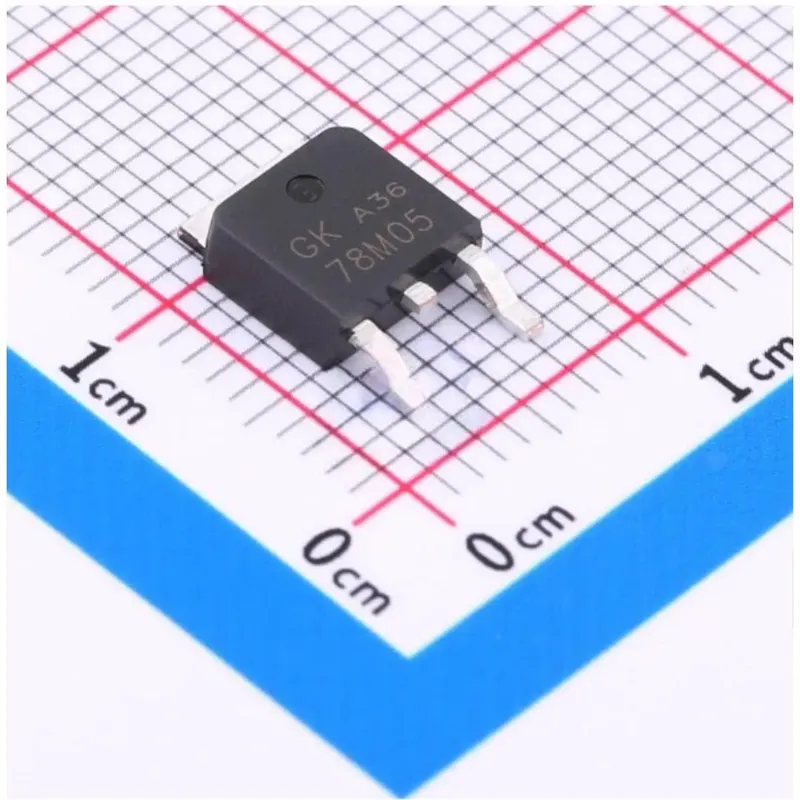

GOODWORK 78M05 5V Linear Voltage Regulator TO-252 (DPAK)
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | GOODWORK 78M05 SMD Fixed 35V 5V 2V @ 1000mA(typ) TO-252-2(DPAK) Dropout Regulators | 8 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 8 EGP
About this product
A fixed 5V positive linear voltage regulator in a surface-mount TO-252 (DPAK) package. It accepts an unregulated input up to 35V and provides a stable 5V output for powering microcontrollers, sensors and logic circuits from a higher-voltage supply.
Specifications
- Output voltage
- 5V
- Max input voltage
- 35V
- Dropout voltage
- 2V (typ)
- Package
- TO-252 (DPAK)
- Mounting
- SMD
- Type
- Fixed positive linear regulator
Frequently asked questions
What is the price of GOODWORK 78M05 5V Linear Voltage Regulator TO-252 (DPAK) in Egypt?
GOODWORK 78M05 5V Linear Voltage Regulator TO-252 (DPAK) currently costs 8 EGP in Egypt.
Where can I buy GOODWORK 78M05 5V Linear Voltage Regulator TO-252 (DPAK) in Egypt?
GOODWORK 78M05 5V Linear Voltage Regulator TO-252 (DPAK) is available from Makers Electronics. Compare the offers above to find the best price.
What input voltage do I need?
The input must be higher than 5V by the dropout voltage, so at least about 7V is needed for a stable 5V output. The input must not exceed 35V. The voltage difference is dissipated as heat, so a large difference warms the regulator.
Does it need external capacitors?
A typical application uses a small input capacitor placed close to the input pin and an output capacitor to keep the regulator stable. Check the datasheet for the recommended values.
