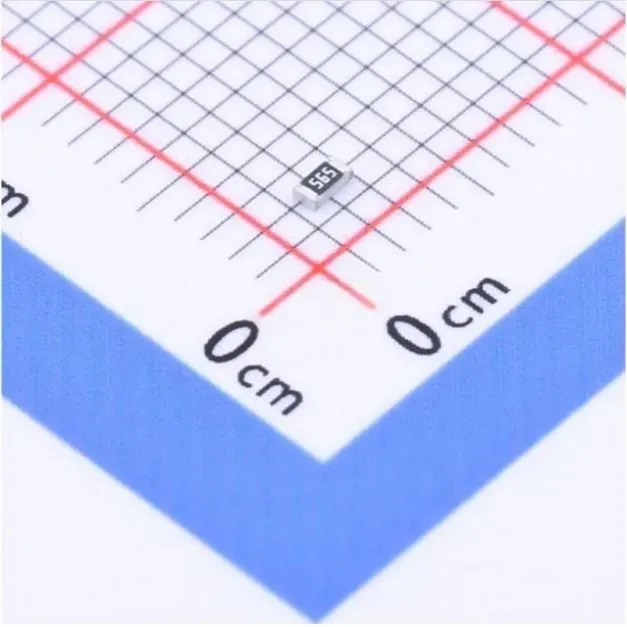

FRC0603J565 TS 5.6MΩ ±5% 0603 SMD Chip Resistor
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Chip Resistor SMD 5.6MΩ ±5% 100mW ±100ppm/℃ 0603 | 0.12 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 0.12 EGP
About this product
The FOJAN FRC0603J565 TS is a 5.6 MΩ chip resistor with ±5% tolerance in the 0603 surface-mount size, rated at 100 mW with a temperature coefficient of ±100 ppm/°C. It suits high-value pull-up, pull-down and bias applications in high-impedance circuits, such as sensor biasing and input dividers. Its low power rating means it is not meant for high-current paths.
Specifications
- Resistance
- 5.6 MΩ
- Tolerance
- ±5%
- Power rating
- 100 mW
- Temperature coefficient
- ±100 ppm/°C
- Package size
- 0603
- Mounting
- SMD chip
Frequently asked questions
What is the price of FRC0603J565 TS 5.6MΩ ±5% 0603 SMD Chip Resistor in Egypt?
FRC0603J565 TS 5.6MΩ ±5% 0603 SMD Chip Resistor currently costs 0.12 EGP in Egypt.
Where can I buy FRC0603J565 TS 5.6MΩ ±5% 0603 SMD Chip Resistor in Egypt?
FRC0603J565 TS 5.6MΩ ±5% 0603 SMD Chip Resistor is available from Makers Electronics. Compare the offers above to find the best price.
Can I use it as a pull-up on a 3.3 V digital input?
It works for very light pull-ups because the current is tiny at 5.6 MΩ. However, with any capacitance on the line, rise times will be slow, so it is not suitable for fast signals.
Is it suitable for power circuits?
Its rating is 100 mW, so it is intended for signal and bias use only. For power dissipation, choose a resistor with a higher wattage rating and calculate P = V²/R or P = I²R for your circuit.
