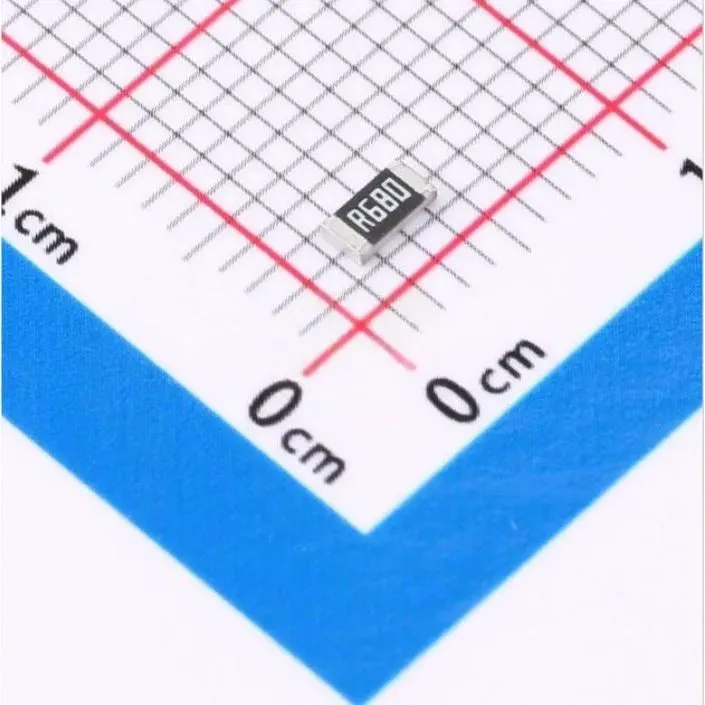

FOJAN FRL1206FR680TS 680mΩ ±1% 1206 SMD Chip Resistor
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | Chip Resistor SMD 680mΩ ±1% ±200ppm/℃ 250mW 1206 | 0.3 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 0.3 EGP
About this product
A 1206 surface-mount thick-film chip resistor rated 680mΩ (0.68 Ω) with ±1% tolerance and ±200ppm/°C temperature coefficient. Its 250mW power rating and -55°C to +155°C operating range suit general low-value resistor needs in SMD designs.
Specifications
- Resistance
- 680mΩ (0.68 Ω)
- Tolerance
- ±1%
- Temperature coefficient
- ±200ppm/℃
- Power rating
- 250mW
- Package
- 1206
- Type
- Thick Film
- Operating temperature range
- -55℃ to +155℃
- Overload voltage (max)
- 200V
Frequently asked questions
What is the price of FOJAN FRL1206FR680TS 680mΩ ±1% 1206 SMD Chip Resistor in Egypt?
FOJAN FRL1206FR680TS 680mΩ ±1% 1206 SMD Chip Resistor currently costs 0.3 EGP in Egypt.
Where can I buy FOJAN FRL1206FR680TS 680mΩ ±1% 1206 SMD Chip Resistor in Egypt?
FOJAN FRL1206FR680TS 680mΩ ±1% 1206 SMD Chip Resistor is available from Makers Electronics. Compare the offers above to find the best price.
What is the maximum current through this resistor?
At 0.68 Ω, dissipating the full 250mW rating allows about 0.6 A (I = √(P/R)). Keep the current below that value, and lower it further if the board runs hot.
Is 680mΩ the same as 0.68 Ω?
Yes. 680 milliohms equals 0.68 ohm, so the value is written in milliohms in this listing.
