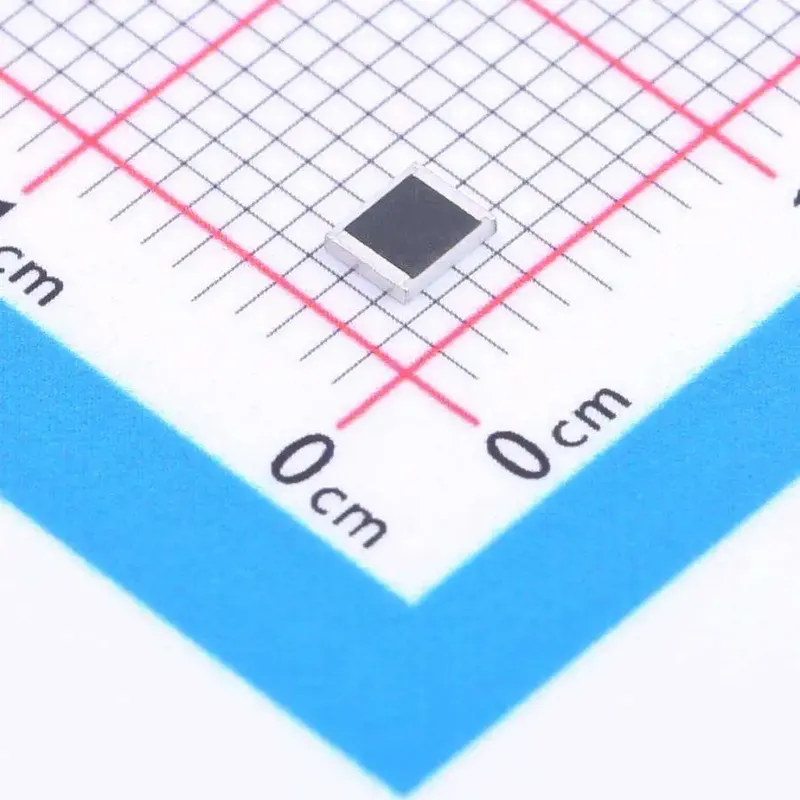

FOJAN FRC1210J473TS 47kΩ 1210 SMD Chip Resistor 0.5W ±5%
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers ElectronicsCheapest | Chip Resistor SMD 47kΩ ±5% 0.5W ±100ppm/℃ 1210 | 0.65 EGP | View in store |
 UGE | SMD Chip Resistor size 1210 47K 5% | 1.71 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 0.65 EGP
About this product
FOJAN FRC1210J473TS is a 47kΩ thick film surface-mount chip resistor in the 1210 package, rated 500mW with ±5% tolerance and ±100ppm/°C temperature coefficient. Its larger body handles more power than 0805 parts, making it suitable for pull-up, pull-down and voltage divider circuits on SMD boards.
Specifications
- Resistance
- 47kΩ
- Power (Watts)
- 500mW
- Tolerance
- ±5%
- Temperature coefficient
- ±100ppm/℃
- Package
- 1210
- Type
- Thick Film Resistors
- Overload voltage (Max)
- 200V
- Operating temperature range
- -55℃~+155℃
Frequently asked questions
What is the price of FOJAN FRC1210J473TS 47kΩ 1210 SMD Chip Resistor 0.5W ±5% in Egypt?
FOJAN FRC1210J473TS 47kΩ 1210 SMD Chip Resistor 0.5W ±5% currently costs between 0.65 and 1.71 EGP across 2 offers in Egypt.
Where can I buy FOJAN FRC1210J473TS 47kΩ 1210 SMD Chip Resistor 0.5W ±5% in Egypt?
FOJAN FRC1210J473TS 47kΩ 1210 SMD Chip Resistor 0.5W ±5% is available from Makers Electronics and UGE. Compare the offers above to find the best price.
Is 0.5W enough for a pull-up resistor?
Yes for typical logic circuits. At 5 V across 47 kΩ the dissipation is about 0.53 mW, far below the 500 mW rating.
Can it replace a 0805 resistor?
Electrically yes for the same value, but the 1210 body is physically larger, so the PCB pads must match the 1210 footprint. Check the board footprint before swapping.
