ESP8266 10A DC 7-30V Network Relay Wi-Fi Module
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | ESP8266 10A DC 7-30V Network Relay WIFI Module | 450 EGP590 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 450 EGP
About this product

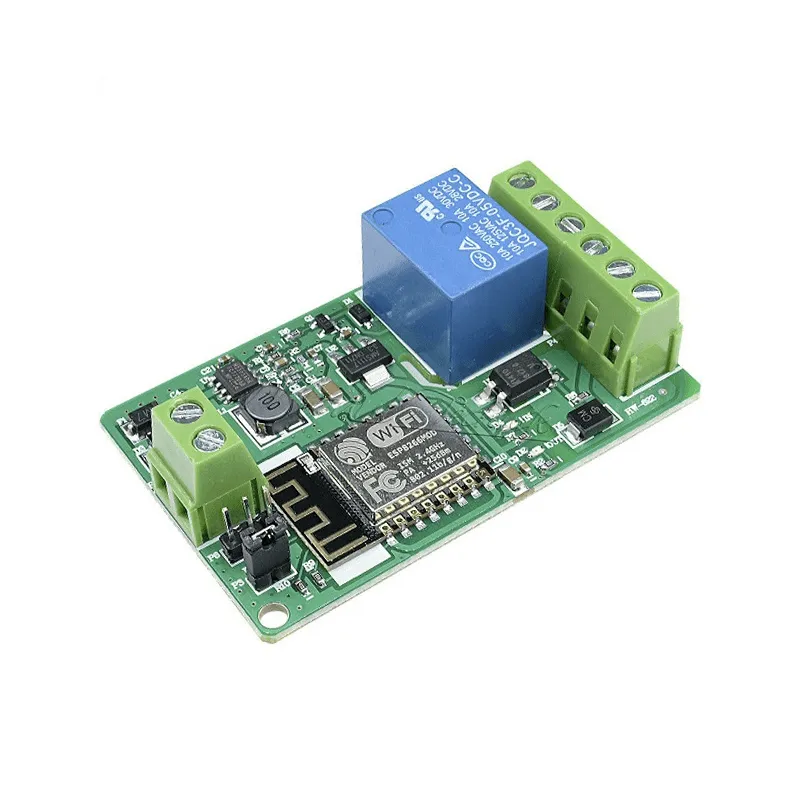

An ESP8266 Wi-Fi network relay module powered from 7 to 30 V DC, with a 10 A relay offering one normally open and one normally closed contact. The four-layer board adds TVS input protection, over-current protection and optocoupler-isolated inputs for remote switching projects.
Specifications
- Input voltage
- DC 7-30 V / تيار مستمر 7-30 فولت
- Relay rating
- 220 V, 10 A (as listed) / 220 فولت، 10 أمبير (حسب الوصف)
- Relay contacts
- 1 NO, 1 NC / تلامس مفتوح واحد ومغلق واحد
- Wi-Fi module
- ESP8266
- Input isolation
- Optocoupler / مقرن ضوئي
- Input protection
- TVS, overvoltage protection above 33 V / TVS وحماية من الجهد الزائد فوق 33 فولت
- Over-current protection
- Yes / نعم
Frequently asked questions
What is the price of ESP8266 10A DC 7-30V Network Relay Wi-Fi Module in Egypt?
ESP8266 10A DC 7-30V Network Relay Wi-Fi Module currently costs 450 EGP in Egypt.
Where can I buy ESP8266 10A DC 7-30V Network Relay Wi-Fi Module in Egypt?
ESP8266 10A DC 7-30V Network Relay Wi-Fi Module is available from Microohm. Compare the offers above to find the best price.
What happens if the input voltage is too high?
The listing states that the input TVS protection operates automatically when the voltage exceeds 33 V. Keep the supply within the 7-30 V range for normal use.
What is the difference between the NO and NC contacts?
The NO (normally open) contact is open when the relay is inactive and closes when it is energised. The NC (normally closed) contact works the opposite way.
