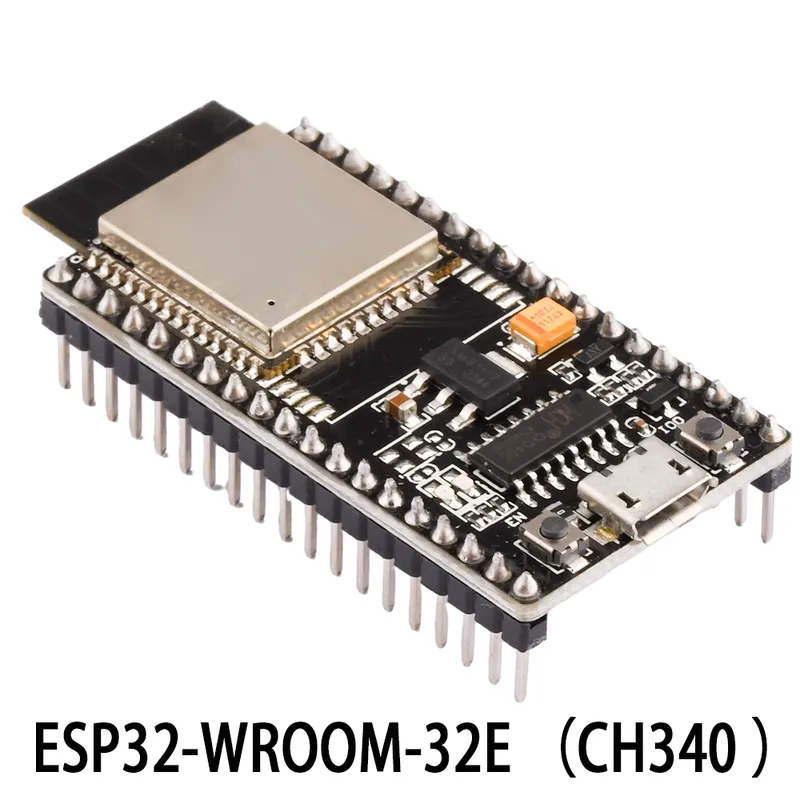

ESP32 CH340 Development Board with ESP32-WROOM-32E, Micro USB
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
An ESP32 development board with a CH340 USB-to-serial chip, a Micro USB port and an ESP32-WROOM-32E module providing Wi-Fi and Bluetooth. It is used for IoT projects, sensor nodes and wireless prototypes, and can be programmed from the Arduino IDE or ESP-IDF.
Specifications
- Module
- ESP32-WROOM-32E
- Wireless
- Wi-Fi + Bluetooth
- USB-serial chip
- CH340
- USB connector
- Micro USB
- Logic level
- 3.3 V
Frequently asked questions
Does it need a driver on Windows?
If the board is not detected, install the CH340 USB-serial driver. Then select an ESP32 board such as ESP32 Dev Module in the Arduino IDE and choose the correct COM port.
Can I connect 5 V sensors directly to its pins?
No. ESP32 GPIO pins work at 3.3 V logic and are not 5 V tolerant. Use a level shifter or a 3.3 V sensor for signal lines, and make sure 5 V modules share a common ground with the board.
