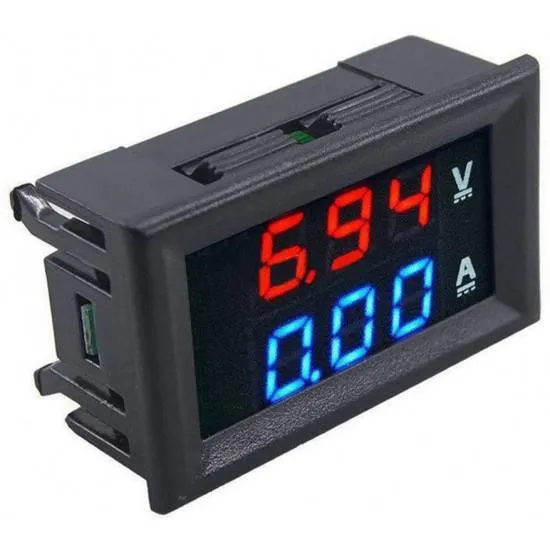

DSN-VC288 DC 100V 10A Dual LED Voltmeter Ammeter Module
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
Two-in-one DC voltmeter and ammeter module with dual 0.28-inch digital displays, blue for current and red for voltage. It measures DC 0–100 V and DC 0–10 A using an included 75 mV shunt, with a stated accuracy of ±0.1%. It is suited to monitoring DC circuits such as battery and DC supply outputs.
Specifications
- Voltage measuring range
- DC 0–100 V
- Current measuring range
- DC 0–10 A
- Measurement accuracy
- ±0.1%
- Power supply
- DC 4.5 V – 30 V
- Shunt
- 75 mV
- Display
- Dual 0.28-inch digital (blue current, red voltage)
- Operating current
- < 20 mA
- Dimensions
- 48 x 29 x 22 mm
Frequently asked questions
How is the current measured and wired?
Current is measured through the included shunt, which is connected in series with the load. The voltage input is connected across the circuit you want to measure. Confirm the wiring before connecting, since the module also needs its own DC supply within 4.5–30 V.
Can it measure more than 10 A or 100 V?
No. The listed measuring ranges are DC 0–10 A and DC 0–100 V, so do not exceed these limits.
