8x8 Red LED Dot Matrix 3mm Model 1088AS with MAX7219
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product

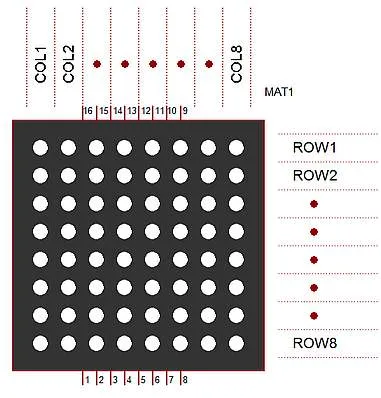

An 8x8 dot matrix display built from 3mm red LEDs, model 1088AS. The listing names the MAX7219 LED driver. It is used for scrolling text, simple icons and pixel-based projects with microcontrollers such as Arduino.
Specifications
- Matrix size
- 8 x 8 / 8 × 8
- LED size
- 3 mm / 3 ملم
- LED color
- Red / أحمر
- Model
- 1088AS
- Driver
- MAX7219 / MAX7219
Frequently asked questions
How do I connect it to an Arduino?
With a MAX7219 driver, you need five connections: VCC to 5V, GND to GND, DIN, CLK and CS (LOAD) to digital pins. Libraries such as LedControl or MD_MAX72XX handle the protocol. Confirm the pin labels on your board first.
Does the module already include the driver chip?
The listing names the MAX7219, but it does not clearly show whether the chip is mounted. A bare LED matrix needs a driver such as MAX7219 to control its rows and columns, so check the board for the chip before wiring.
