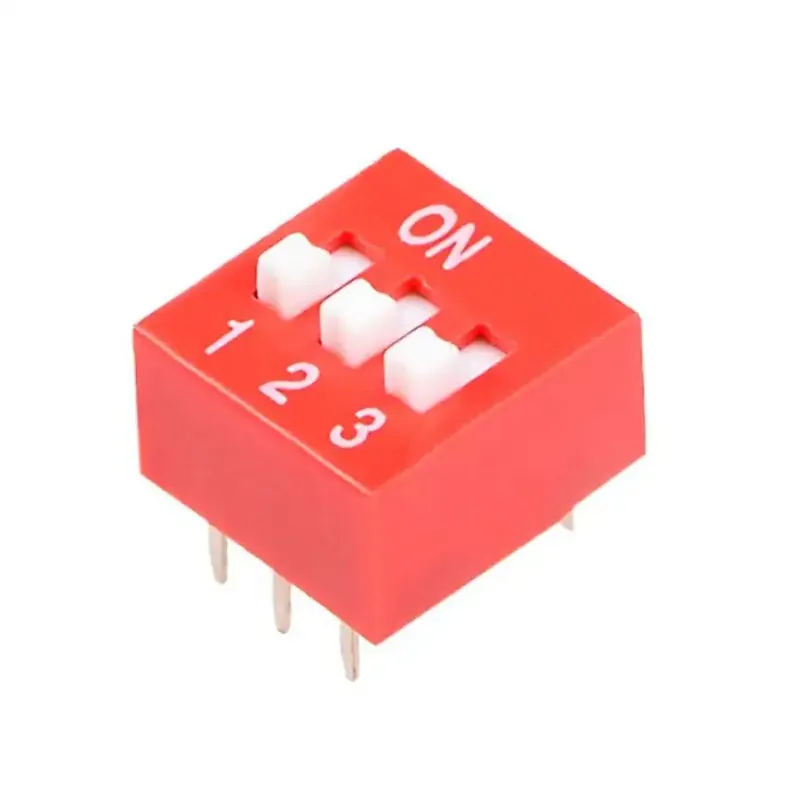

DIP Dial Toggle Switch SW 3P (DIP-SW-3P)
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers ElectronicsCheapest | Dip Switch 3 Way | 5 EGP | View in store |
 UGE | DIP Dial Toggle Switch SW 3P | 9.69 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 5 EGP
About this product
A 3-pole DIP toggle switch with a plastic body, used to set configuration options on PCBs, such as addresses or operating modes in microcontroller projects. It is rated for low-current signal switching, not for driving loads.
Specifications
- Poles
- 3P (3 switches)
- Switching rating
- 25 mA, 24 V DC
- Non-switching rating
- 100 mA, 50 V DC
- Contact resistance
- 50 mΩ initial; 100 mΩ typical after life test
- Size
- 0.9 x 1 x 1.1 cm
- Material
- Plastic
- Weight
- 7 g
Frequently asked questions
What is the price of DIP Dial Toggle Switch SW 3P (DIP-SW-3P) in Egypt?
DIP Dial Toggle Switch SW 3P (DIP-SW-3P) currently costs between 5 and 9.69 EGP across 2 offers in Egypt.
Where can I buy DIP Dial Toggle Switch SW 3P (DIP-SW-3P) in Egypt?
DIP Dial Toggle Switch SW 3P (DIP-SW-3P) is available from Makers Electronics and UGE. Compare the offers above to find the best price.
How do I use it with a microcontroller?
Connect each switch between an MCU input pin and GND, and use a pull-up resistor (internal or external) so the input reads a defined logic level in both positions.
Can it switch motors or LEDs directly?
No. The listed switching rating is 25 mA at 24 V DC, so use a transistor, MOSFET or relay to switch loads.
