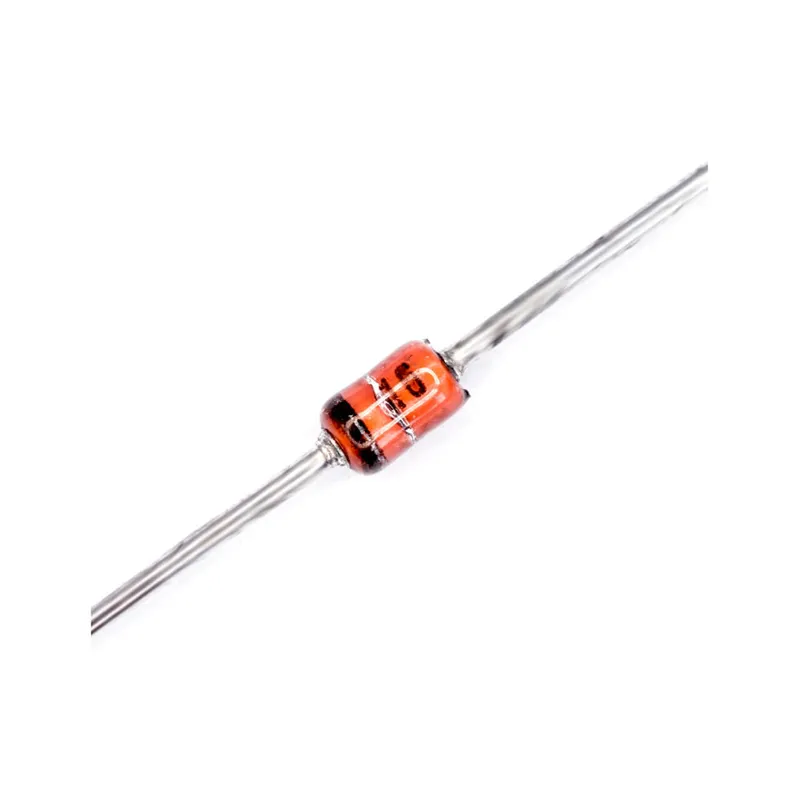

BZX55C15 Zener Diode 15V 0.5W DO-35
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 RAM ElectronicsCheapest | Zener Diode 15V / 0.5W | 0.5 EGP | View in store |
 Makers Electronics | BZX55C15 Zener Diode 15V 0.5W | 0.5 EGP | View in store |
 UGE | Zener Diode 0.5W 15V | 1.14 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 0.5 EGP
About this product
The BZX55C15 is a 15V Zener diode rated at 0.5W in a DO-35 glass package. It holds a fixed voltage in reverse breakdown, making it useful for simple voltage references, overvoltage protection and low-current regulator circuits. Mount it with the cathode band toward the positive side of the circuit.
Specifications
- Nominal Zener voltage
- 15 V
- Power dissipation
- 0.5 W (500 mW)
- Tolerance
- 5%
- Package
- DO-35 glass
- Diode configuration
- Single
Frequently asked questions
What is the price of BZX55C15 Zener Diode 15V 0.5W DO-35 in Egypt?
BZX55C15 Zener Diode 15V 0.5W DO-35 currently costs between 0.5 and 1.14 EGP across 3 offers in Egypt.
Where can I buy BZX55C15 Zener Diode 15V 0.5W DO-35 in Egypt?
BZX55C15 Zener Diode 15V 0.5W DO-35 is available from RAM Electronics, Makers Electronics, and UGE. Compare the offers above to find the best price.
Which way round should the BZX55C15 be installed?
The cathode band goes toward the positive side of the circuit, and the anode toward ground or the negative rail. This reverse-biases the diode so it clamps at its 15 V Zener voltage. Installed backwards, it acts as an ordinary forward diode.
What is the maximum current through the BZX55C15?
At 0.5 W and 15 V, the maximum current is about 33 mA. Use a series resistor to keep the operating current well below this limit, and make sure the resistor can dissipate its own power.
