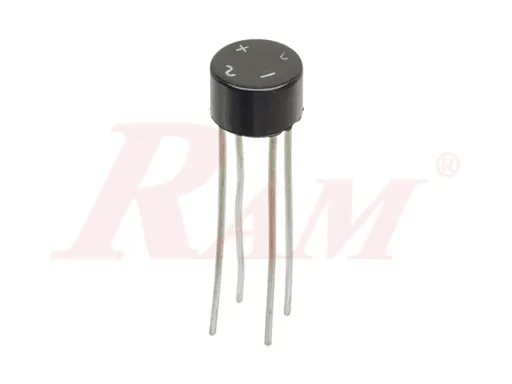

Bridge Rectifier 2 A, Round Shape
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 RAM Electronics | Bridge Rectifier 2 Ampere - Round Shape | 3.5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 3.5 EGP
About this product
A 2 A round-body bridge rectifier that combines four diodes to convert AC into pulsating DC. It is suited to small power supplies, adapters and low-current DC circuits in hobby and student projects. Add a filter capacitor after it for smoother DC output.
Specifications
- Rated current
- 2 A / 2 أمبير
- Shape
- Round / دائري
- Configuration
- 4-diode bridge / قنطرة من 4 دايودات
- Rectification type
- Single-phase full-wave / موجة كاملة أحادية الطور
Frequently asked questions
What is the price of Bridge Rectifier 2 A, Round Shape in Egypt?
Bridge Rectifier 2 A, Round Shape currently costs 3.5 EGP in Egypt.
Where can I buy Bridge Rectifier 2 A, Round Shape in Egypt?
Bridge Rectifier 2 A, Round Shape is available from RAM Electronics. Compare the offers above to find the best price.
How do I wire it to a transformer and a load?
Connect the transformer secondary to the two AC terminals. Take the DC output from the + and - terminals, and place a filter capacitor across them, observing its polarity.
What reverse voltage rating should I check?
Check the reverse voltage rating printed on the body. It must exceed the peak voltage of your AC input, which is about 1.41 times the RMS voltage. For example, a 12 V RMS secondary peaks at roughly 17 V.
