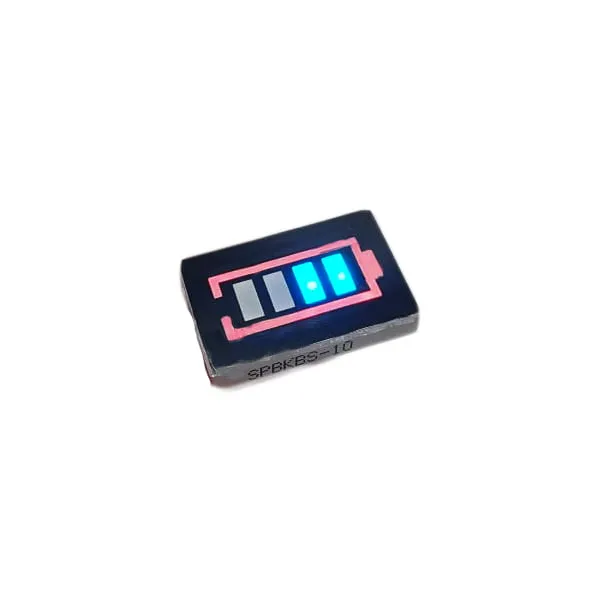

Battery Level Indicator Bar Graph 4-Segment 7-Pin
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Microohm | Battery Level Indicator Bar Graph 4-Segment 7pin | 20 EGP25 | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 20 EGP
About this product
A 4-segment bar graph module used to show battery level in portable and battery-powered projects. Its 7-pin layout provides the connections for the four segments. Use it as a simple visual gauge in power monitoring circuits, chargers and handheld devices.
Specifications
- Segments
- 4
- Pin count
- 7
- Display type
- Bar graph
Frequently asked questions
What is the price of Battery Level Indicator Bar Graph 4-Segment 7-Pin in Egypt?
Battery Level Indicator Bar Graph 4-Segment 7-Pin currently costs 20 EGP in Egypt.
Where can I buy Battery Level Indicator Bar Graph 4-Segment 7-Pin in Egypt?
Battery Level Indicator Bar Graph 4-Segment 7-Pin is available from Microohm. Compare the offers above to find the best price.
What is the pinout and how do I wire it?
The listing does not give the pinout. Obtain the datasheet for the exact part and follow its pin mapping, including the common pin and the current-limiting resistors required for each segment, before powering it.
How can I use it to show battery level?
Drive each segment from a voltage comparator or a microcontroller pin that compares the battery voltage against set thresholds. Each lit segment then represents a higher charge level.
