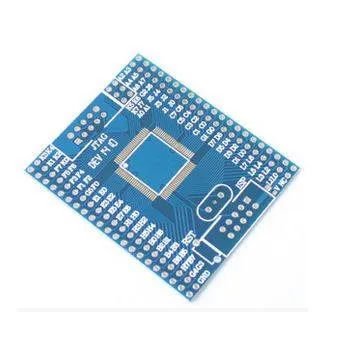

ATmega1280/2560 Minimum System Core Board PCB
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A minimum-system core board for ATmega1280 and ATmega2560 microcontrollers, with pads for soldering the SMD chip and an ISP header for programming. It gives the microcontroller a base board so you can add your own circuits around it.
Specifications
- Supported MCUs
- ATmega1280, ATmega2560
- Chip mounting
- SMD pads (solder by hand)
- Programming interface
- ISP header
- Board type
- Minimum system core board PCB
Frequently asked questions
Do I need to solder the SMD chip myself?
Yes. The board has pads for soldering an SMD microcontroller, so the chip must be soldered on before use. Use flux, a fine-tip iron or hot-air station, and inspect every pin under magnification.
How do I program it?
Connect an AVR ISP programmer such as USBasp to the ISP header, and select ATmega1280 or ATmega2560 as the target in your programming software. Confirm the header pin order against the board silkscreen before connecting.
