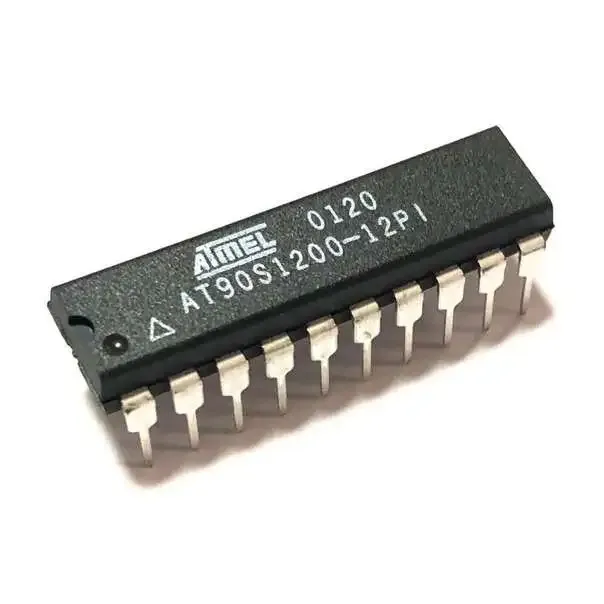

AT90S1200-12PI 8-bit AVR Microcontroller 1KB Flash 20-PDIP
Prices updated: 12 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | AT90S1200-12PI 20-PDIP Microcontoller | 125 EGP | View in store |
Price history
Lowest daily price, last 90 days
Not enough price history yet.
Lowest price recorded: 125 EGP
About this product
The AT90S1200-12PI is an 8-bit AVR microcontroller in a 20-pin DIP package, running at up to 12 MHz with 1 KB of flash program memory and 64 bytes of EEPROM. It is a legacy AVR device, mainly used for maintaining older designs and for learning projects.
Specifications
- Core
- 8-bit AVR / AVR بسعة 8 بت
- Maximum clock speed
- 12 MHz / 12 ميجاهرتز
- Flash program memory
- 1 KB (512 x 16) / 1 كيلوبايت (512 × 16)
- EEPROM
- 64 x 8 (64 bytes) / 64 بايت
- I/O pins
- 15 / 15
- Supply voltage
- 4 V to 6 V / من 4 فولت إلى 6 فولت
- Package
- 20-PDIP / 20-PDIP
- Operating temperature
- -40°C to 85°C / من -40 إلى 85 درجة مئوية
Frequently asked questions
What is the price of AT90S1200-12PI 8-bit AVR Microcontroller 1KB Flash 20-PDIP in Egypt?
AT90S1200-12PI 8-bit AVR Microcontroller 1KB Flash 20-PDIP currently costs 125 EGP in Egypt.
Where can I buy AT90S1200-12PI 8-bit AVR Microcontroller 1KB Flash 20-PDIP in Egypt?
AT90S1200-12PI 8-bit AVR Microcontroller 1KB Flash 20-PDIP is available from Makers Electronics. Compare the offers above to find the best price.
Can I program it with the Arduino IDE?
Not directly. Standard Arduino board packages target other AVR chips. The AT90S1200 is programmed through its SPI (ISP) interface using an AVR programmer and a toolchain that supports this part.
What supply voltage should I use?
The supply range is 4 V to 6 V, so a regulated 5 V supply is the usual choice. Do not power it from a 3.3 V rail.
