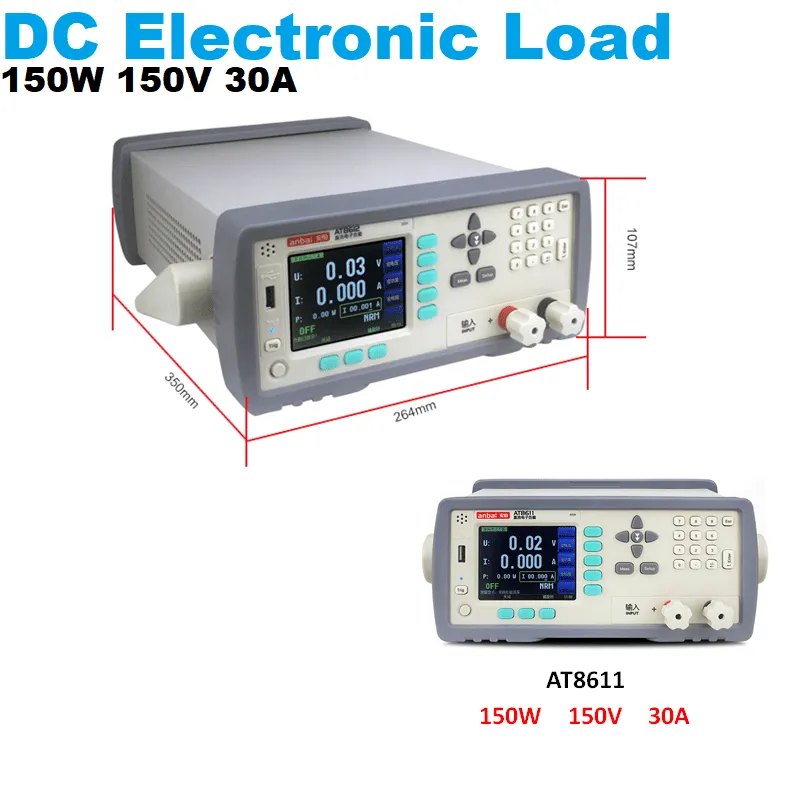

AT8611 DC Electronic Load 150V 30A 150W
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
A benchtop DC electronic load rated 150 V, 30 A and 150 W, used to test power supplies, batteries and other DC sources. It offers short-circuit, transient, sequence, auto-test and battery test functions, with a 3.5-inch color LCD and remote control over RS232C and SCPI.
Specifications
- Maximum voltage
- 150 V
- Maximum current
- 30 A
- Power rating
- 150 W
- Display
- 3.5-inch color LCD
- Interface
- RS232C / Handler
- Programming language
- SCPI and simple protocol
- Trigger
- Internal / Bus / External
Frequently asked questions
How do I control the load from a PC?
Connect the RS232C interface to a PC serial port and send SCPI commands as described in the manual. A suitable serial cable or adapter is needed.
Can it be used for battery testing?
The listing includes a battery test function with capacity up to 999.99 Ah. Set the discharge limits in the manual and confirm they are safe for the battery under test.
