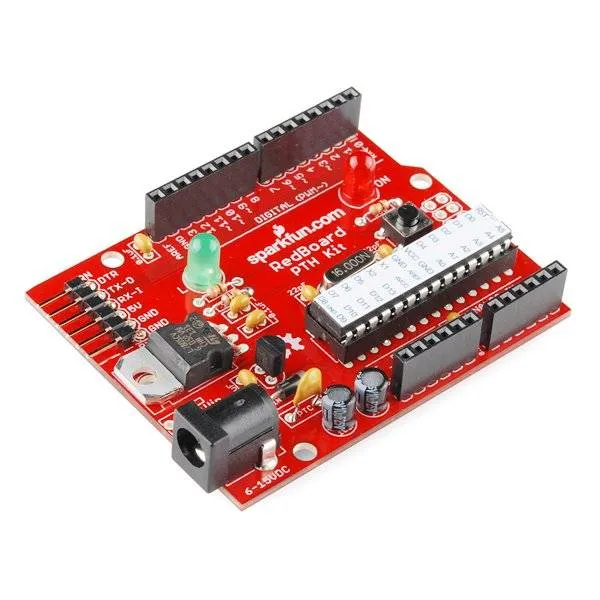

Arduino Uno DIY Kit - Uno-Compatible Board Assembly Kit
Currently unavailable
No store has this product in stock right now. Prices below are the last ones we recorded.
Prices updated: 12 Oct 2026
Price history
Lowest daily price, last 90 days
Not enough price history yet.
About this product
This DIY kit lets you assemble your own Uno-compatible development board with basic soldering, following the included assembly guide. The finished board can be powered from a regulated 6-15 V DC supply through the barrel jack or JST connector, or through a USB-to-UART module. The kit includes the PCB, an MCP1700 3.3 V regulator, two LEDs and two 330 Ohm resistors.
Specifications
- Board type
- Uno-compatible through-hole kit (assembly required)
- Power input
- 6-15 V DC regulated (barrel jack or JST)
- Programming
- External USB-to-UART module (FTDI Basic or compatible)
- 3.3 V regulator
- MCP1700
- LEDs
- 1 x 5 mm green, 1 x 5 mm red
- Resistors
- 2 x 330 Ohm
Frequently asked questions
How do I program this board?
You need an FTDI Basic or any compatible USB-to-UART module to upload code from the Arduino IDE, as the kit notes. Connect it to the board's programming header and select the matching serial port.
What input voltage can power the finished board?
The board accepts a regulated 6-15 V DC supply through the barrel jack or the JST connector, and it can also be powered through the USB-to-UART module. The included MCP1700 regulator provides 3.3 V.
