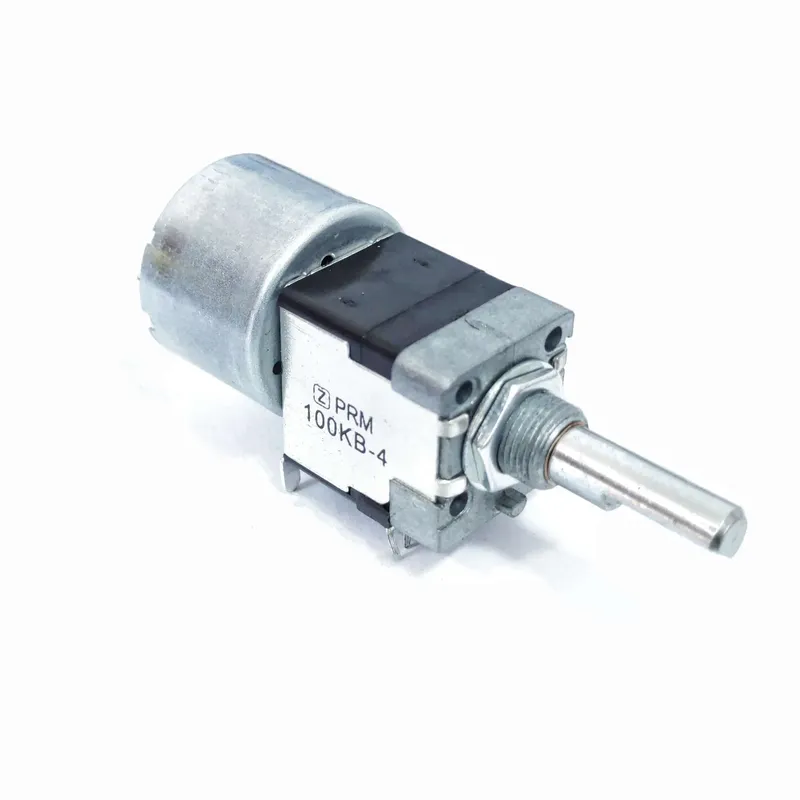

ALPS Motor-Driven Rotary Potentiometer Single-Shaft Dual 100kΩ
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 Makers Electronics | ALPS Rotary Motor-driven Potentiometer, Single-shaft, Dual-unit, 100kΩ | 225 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 225 EGP
About this product
A dual-unit 100 kΩ rotary potentiometer from ALPS with a built-in motor that drives the shaft to a set position, allowing automatic or remote level adjustment. It has a flat single shaft, a screw-mounted bushing, and a 300° rotation range, and suits audio and control equipment that needs automated level setting.
Specifications
- Total resistance
- 100 kOhms
- Resistor elements
- Dual-unit
- Motor voltage
- 4 to 6 V DC (standard 4.5 V)
- Total rotational angle
- 300° ±5°
- Rotation speed
- 10 ±3 sec/300° (4.5 V DC)
- Rated power
- 0.05 W
- Total resistance tolerance
- ±20 %
- Operating temperature
- -10 °C to +70 °C
Frequently asked questions
What is the price of ALPS Motor-Driven Rotary Potentiometer Single-Shaft Dual 100kΩ in Egypt?
ALPS Motor-Driven Rotary Potentiometer Single-Shaft Dual 100kΩ currently costs 225 EGP in Egypt.
Where can I buy ALPS Motor-Driven Rotary Potentiometer Single-Shaft Dual 100kΩ in Egypt?
ALPS Motor-Driven Rotary Potentiometer Single-Shaft Dual 100kΩ is available from Makers Electronics. Compare the offers above to find the best price.
What voltage does the motor need?
The motor is rated for 4 to 6 V DC, with 4.5 V as the standard value. Running it outside this range is not recommended, as it changes the rotation speed and can damage the motor.
How do I wire the motor and the resistive track?
The motor terminals and the resistance terminals are separate. The listing's pin-out table is incomplete, so confirm each terminal from the manufacturer datasheet before connecting power or the signal.
