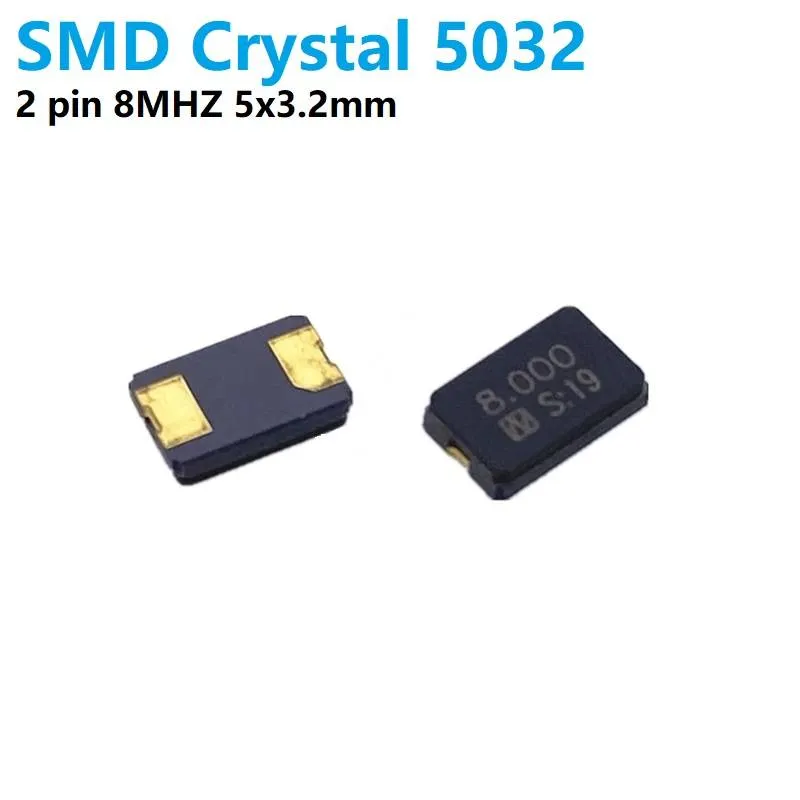

8MHz 5032 SMD Quartz Crystal, 2-Pin
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | 5032 SMD quartz 2pin crystal oscillator 8MHZ | 28.5 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 28.5 EGP
About this product
An 8 MHz quartz crystal in a 5032 SMD package with two pins, used as a timing reference for microcontrollers and digital circuits. It has a load capacitance of 15 to 33 pF, ±50 ppm frequency tolerance and a maximum series resistance of 100 ohm. Use it with the load capacitors recommended in your MCU datasheet.
Specifications
- Frequency
- 8 MHz
- Package
- 5032 SMD (2-pin)
- Load capacitance (CL)
- 15 pF to 33 pF
- Max series resistance (Rs)
- 100 Ω
- Frequency tolerance
- ±50 ppm
- Temperature coefficient
- ±30 ppm
Frequently asked questions
What is the price of 8MHz 5032 SMD Quartz Crystal, 2-Pin in Egypt?
8MHz 5032 SMD Quartz Crystal, 2-Pin currently costs 28.5 EGP in Egypt.
Where can I buy 8MHz 5032 SMD Quartz Crystal, 2-Pin in Egypt?
8MHz 5032 SMD Quartz Crystal, 2-Pin is available from UGE. Compare the offers above to find the best price.
Do I need load capacitors with this crystal?
Yes. A two-pin crystal normally needs two capacitors, one from each pin to ground. Their values are chosen from the load capacitance (CL) and the recommended values in the microcontroller datasheet.
Which microcontrollers can use an 8 MHz crystal?
Many microcontrollers accept an 8 MHz crystal as their clock source, but support depends on the specific device. Check the frequency range and clock configuration in the MCU datasheet before connecting it.
