8-Pole Pluggable PCB Screw Terminal Block 3.81mm Pitch
Prices updated: 13 Oct 2026
Compare prices
| Store | product | Price | View in store |
|---|---|---|---|
 UGE | 8 pin Double rows pluggable PCB terminal block 3.81mm pitch | 135 EGP | View in store |
Price history
Lowest daily price, last 90 days
Lowest price recorded: 135 EGP
About this product

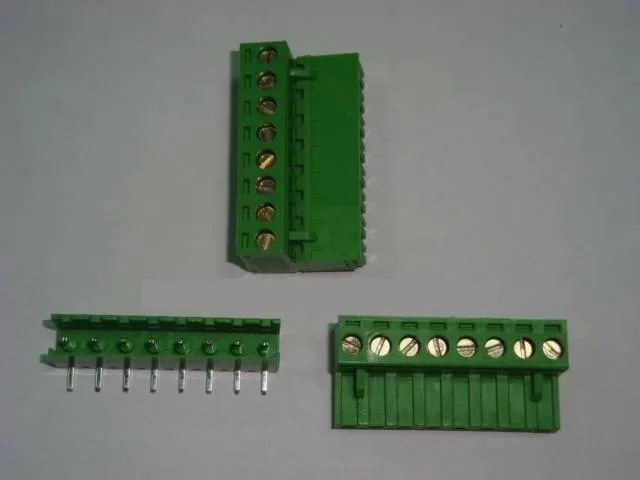

An 8-pole pluggable screw terminal block with 3.81 mm pitch, made of a PCB-mount male header and a removable female plug. Screws secure both bare wire and crimped lugs, and the plug can be disconnected for servicing. It is rated at 300 V and 8 A and suits power and signal wiring on control boards and DIY projects.
Specifications
- Poles
- 8 (double row per listing title)
- Pitch
- 3.81 mm
- Rated voltage
- 300 V
- Rated current
- 8 A
- Wire range
- 28-16 AWG (1.5 mm²)
- Strip length
- 7-8 mm
- Operating temperature
- -40 °C to +105 °C
- Housing material
- PA66
Frequently asked questions
What is the price of 8-Pole Pluggable PCB Screw Terminal Block 3.81mm Pitch in Egypt?
8-Pole Pluggable PCB Screw Terminal Block 3.81mm Pitch currently costs 135 EGP in Egypt.
Where can I buy 8-Pole Pluggable PCB Screw Terminal Block 3.81mm Pitch in Egypt?
8-Pole Pluggable PCB Screw Terminal Block 3.81mm Pitch is available from UGE. Compare the offers above to find the best price.
What wire size and strip length should I use?
The wire range is 28 to 16 AWG, up to 1.5 mm². Strip 7 to 8 mm of insulation, insert the wire fully, and tighten the M2 steel screw until the wire is held firmly.
How does the plug connect to the board?
The male part is soldered to the PCB at 3.81 mm pitch, and the female plug slides onto it. Make sure the plug's pin count and orientation match the header before pushing it in.
